HZS75
Reliable output for medium-to-large projects.
75 m³/h*JS1500 referenceRoad and commercial supply
OVERVIEW&DETAILS
Belt Type Stationary Concrete Batching Plant
A belt type concrete batching plant uses a belt conveyor to transfer weighed aggregates into the mixing system. It is designed for smooth aggregate transfer and higher-volume fixed production.
SIMAMIX offers HZS75, HZS90, HZS120, HZS150 and HZS180 belt type plants for highways, bridges, dams, ports, commercial concrete supply and other projects with sustained demand.
Get a Configuration Recommendation
Product TypeStationary belt type concrete batching plant
Model RangeHZS75 / HZS90 / HZS120 / HZS150 / HZS180
Rated Capacity75–180 m³/h according to model*
Typical UsesHighways, bridges, dams, ports and ready-mix
HZS75–HZS180 Models
HZS90
Balanced production for infrastructure work.
90 m³/h*JS1500 referenceSteady aggregate feeding
HZS120
High-volume production for major sites.
120 m³/h*JS2000 referenceLarge project output
HZS150
Heavy-duty solution for continuous demand.
150 m³/h*JS3000 referenceHighway and dam projects
HZS180
Maximum range output for large projects.
180 m³/h*JS3000 referenceLarge-scale supply
Reference Technical Parameters
| Parameter | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
|---|---|---|---|---|---|
| Rated productivity | 75 m³/h | 90 m³/h | 120 m³/h | 150 m³/h | 180 m³/h |
| Main mixer | JS1500 | JS1500 | JS2000 | JS3000 | JS3000 |
| Aggregate feeding | Belt conveyor transfer; belt length, width and receiving arrangement are project-specific | ||||
| Nominal discharge volume | 1.5 m³ | 1.5 m³ | 2.0 m³ | 3.0 m³ | 3.0 m³ |
| Working cycle | 60 s | 60 s | 60 s | 60 s | 60 s |
| Discharge height | 3.8–4.2 m | 3.8–4.2 m | 3.8–4.2 m | 4.0–4.2 m | 4.0–4.2 m |
| Maximum aggregate size | 60/80 mm, according to final configuration | ||||
| Control system | PLC automatic control option; final electrical configuration is project-specific | ||||
*Reference configuration only. Confirm the final SIMAMIX data sheet according to aggregate grading, moisture, mix, working cycle and site conditions.
Applications

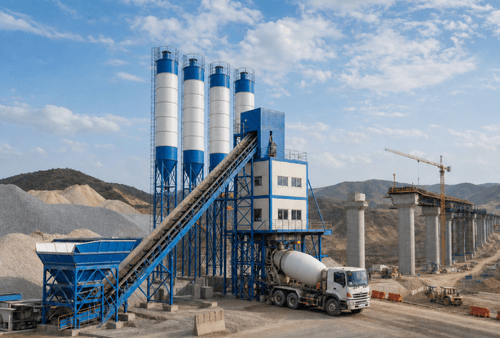

Highway & BridgeRoad bases, bridge decks and infrastructure structures.

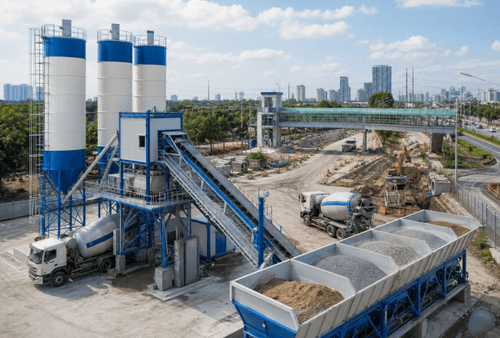

Municipal ProjectsUrban construction, public works and infrastructure development.

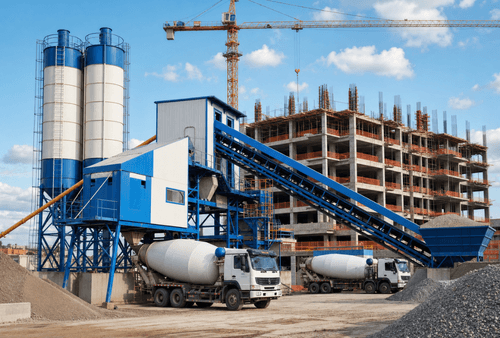

Building ConstructionCommercial, industrial and large-scale building projects.

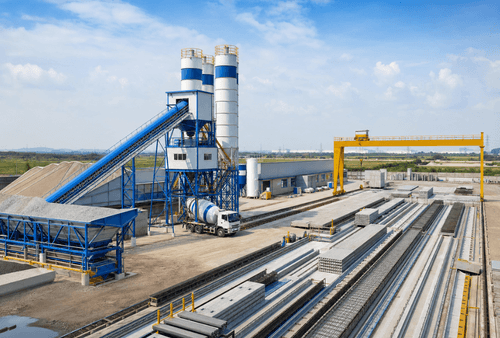

Precast ConcreteReliable concrete production for precast components and standardized production.
WHY CHOOSE SIMAMIX
Why Choose SIMAMIX
.jpg)
Belt Type Plant Components, Quality and End-to-End Service
For an overseas buyer, an HZS75–HZS180 belt type batching plant is a long-term production investment. This section explains the equipment foundation, belt feeding system, quality process, factory capability and project support behind a high-volume concrete production solution.
Core Components & Advantages
Twin-Shaft MixerHigh-intensity mixing supports uniform concrete quality and stable output across HZS75–HZS180 production cycles.
Aggregate Batching MachineMulti-bin aggregate batching helps maintain accurate proportions for different aggregate sizes and concrete mixes.
Precision Weighing SystemAggregate, cement, water and additive weighing is coordinated for repeatable mix quality and efficient high-volume production.
Cement SiloBulk cement storage supports continuous operation and can be configured according to output, material demand and site conditions.
Screw Conveyor SystemEnclosed powder conveying provides a stable route from cement storage to the weighing and mixing system.
PLC Control SystemAutomatic control options coordinate batching, belt feeding, weighing, mixing, alarms and production records.
Quality Control for Belt Type Plants
01 / IncomingMaterial InspectionCheck steel, mixer parts, conveyor components, sensors and key electrical parts before assembly.
02 / AssemblySystem AssemblyConfirm the batching tower, belt conveyor, mixer, weighing system, silo and structural connections.
03 / TestingFunction TestingTest belt alignment, weighing accuracy, control logic, mixer operation and material transfer.
04 / DispatchPre-shipment CheckVerify the final HZS configuration, component list, packing plan and shipment documents.
Factory Display

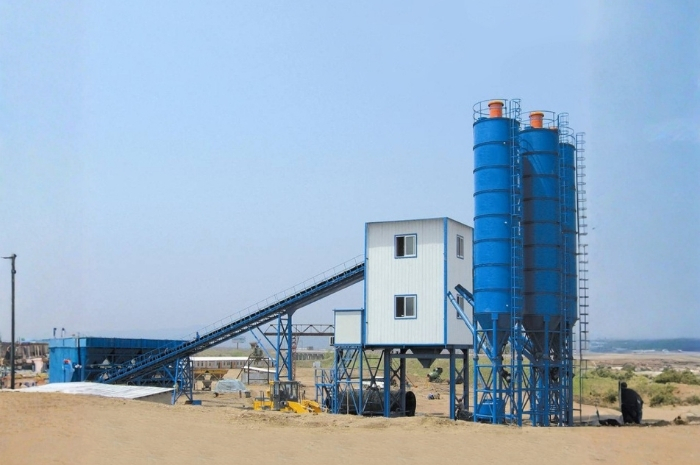

Factory OverviewPlant structures, cement silos, batching equipment and belt conveyor modules arranged for organized production.
Equipment AssemblySteel frames, belt conveyor sections, hoppers and mixer components prepared for project assembly.
Quality TestingControl cabinets, weighing sensors, belt operation and system checks completed before dispatch.
Dispatch PreparationPlant modules and conveyor components secured for loading, delivery and project installation.
End-to-End Service
Pre-salesReview required capacity, aggregate flow, belt conveyor layout, discharge height, power supply and site conditions.
In-salesCoordinate production progress, configuration inspection, belt and component packing, shipment and delivery documents.
After-salesSupport installation, belt alignment, commissioning, operator training, troubleshooting, maintenance and spare parts planning.
CASE & CERTIFICATION
Project Cases & Certification
Evidence for Your Purchase Decision
Replace the reference material below with verified project photos, certificates and delivery records before publishing.
Infrastructure Plant Reference
- System
- Belt type reference layout
- Application
- Commercial or infrastructure concrete
- Status
- Pakistan
Factory & Equipment
- Scope
- Plant structures and modules
- Support
- Configuration and delivery coordination
- Status
- Indonesia
Quality Inspection
- Check
- Control, weighing and system review
- Documents
- Final list confirmed per order
- Status
- Nigeria
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting,
E-mail: info@simamix.com and Telephones:+86 18538068019.
FAQ
FAQ Before Purchase
Belt Type Stationary Concrete Batching Plant FAQ
What is a belt type concrete batching plant?
It uses a belt conveyor to transfer weighed aggregates into the mixing system. It is commonly selected for fixed projects with smooth feeding and higher sustained output.
Which model should I choose: HZS75, HZS90, HZS120, HZS150 or HZS180?
Choose according to hourly output, project duration, available site area, aggregate type, concrete mix and delivery schedule. The final recommendation should confirm the mixer and conveyor configuration.
What information is needed for a correct quotation?
Send the project location, required capacity, concrete mix, aggregate size and moisture, power supply, discharge height, site layout, start date and installation requirements.
What are the advantages of belt feeding?
Belt feeding provides a smooth transfer route and is well suited to high-volume fixed production. The best choice still depends on site geometry, maintenance access and output.
What does the service package include?
Depending on the order, service can include layout planning, configuration, production follow-up, inspection, shipment coordination, installation guidance, commissioning, operator training and spare parts support.
Need a Belt Type HZS Solution?
Send your capacity, project type and site information for a model recommendation and quotation discussion.
Get an Inquiry Email SIMAMIX
