HZS25
Compact solution for smaller fixed projects.
Rated capacity: 25 m³/h* Building and township roads Lower space requirement
OVERVIEW&DETAILS

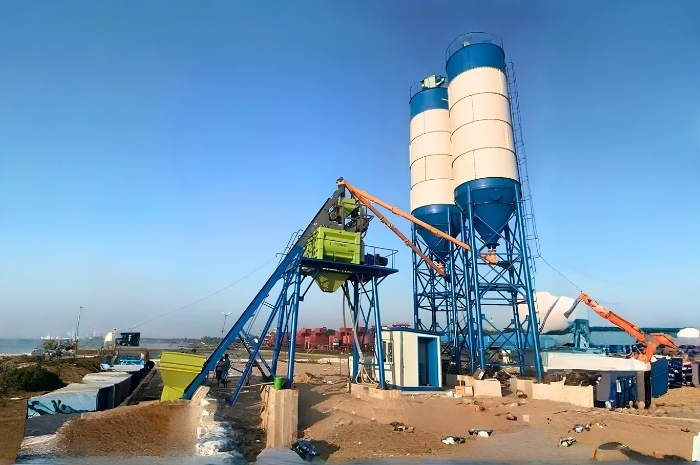

Hopper Type Stationary Concrete Batching Plant
A hopper type concrete batching plant uses a skip hoist to lift aggregates into the mixing system. It is designed for fixed construction projects that need reliable concrete production with a practical layout and straightforward operation.
SIMAMIX offers the HZS25, HZS35, HZS50 and HZS60 series for building construction, road works, municipal projects and precast concrete production. Final equipment configuration should be selected according to output, site conditions, concrete mix and project schedule.
Get an HZS Recommendation
Product Type Stationary hopper type concrete batching plant
Model Range HZS25 / HZS35 / HZS50 / HZS60
Rated Capacity 25–60 m³/h according to model*
Typical Uses Building, road, municipal and precast projects
HZS25–HZS60 Models
HZS35
Balanced output for growing project demand.
Rated capacity: 35 m³/h* Building and municipal works Stable daily production
HZS50
Practical choice for commercial supply.
Rated capacity: 50 m³/h* Road and infrastructure works Higher production efficiency
HZS60
Higher output for larger site demand.
Rated capacity: 60 m³/h* Ready-mix and major projects Higher output reserve
Full Model Parameters
| Parameter | HZS25 | HZS35 | HZS50 | HZS60 |
|---|---|---|---|---|
| Rated productivity | 25 m³/h | 35 m³/h | 50 m³/h | 60 m³/h |
| Main mixer | JS500 | JS750 | JS1000 | JS1000 |
| Aggregate batching machine | PLD800 | PLD1200 | PLD1600 | PLD2400* |
| Nominal discharge volume | 0.50 m³ | 0.75 m³ | 1.00 m³ | 1.00 m³ |
| Working cycle | 72 s | 72 s | 72 s | 60 s |
| Discharge height | 3.8–4.1 m | 3.8 m | 3.8–4.0 m | 4.0 m |
| Maximum aggregate size | 60 mm | 60/80 mm | 60/80 mm | 60/80 mm |
| Aggregate weighing range / accuracy | 0–1,500 kg / ±2% | 0–2,250 kg / ±2% | 0–2,500 kg / ±2% | 600–2,000 kg / ±2% |
| Cement weighing range / accuracy | 0–300 kg / ±1% | 0–400 kg / ±1% | 0–500 kg / ±1% | 300–1,200 kg / ±1% |
| Water weighing range / accuracy | 0–200 kg / ±1% | 0–300 kg / ±1% | 0–300 kg / ±1% | 200–600 kg / ±1% |
| Admixture weighing range / accuracy | 0–40 kg / ±1% | 0–40 kg / ±1% | 0–40 kg / ±1% | 20–60 kg / ±1% |
| Control system | PLC / automatic control option; final electrical configuration is project-specific | |||
*PLD2400 is shown as the SIMAMIX reference configuration for HZS60. HZS series values can vary with aggregate type, bin arrangement, discharge height, cement silo package, power supply and local project requirements. Confirm the final HZS25/HZS35/HZS50/HZS60 data sheet before publishing a quotation.
Applications

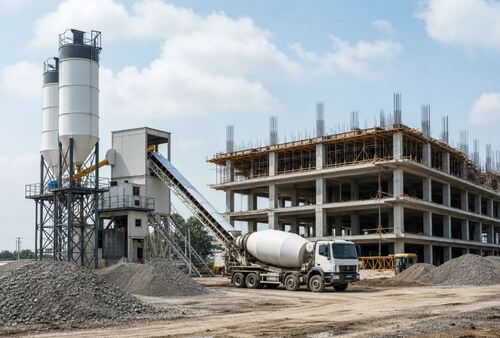

Building Construction Residential, commercial and industrial buildings.

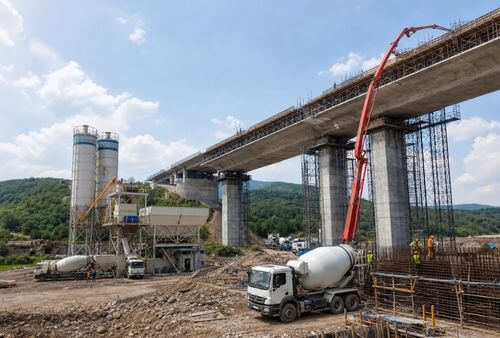

Road & Bridge Roads, bridges and infrastructure projects.

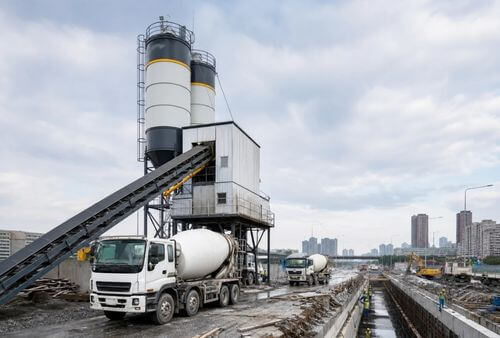

Municipal Projects Urban construction and public works.

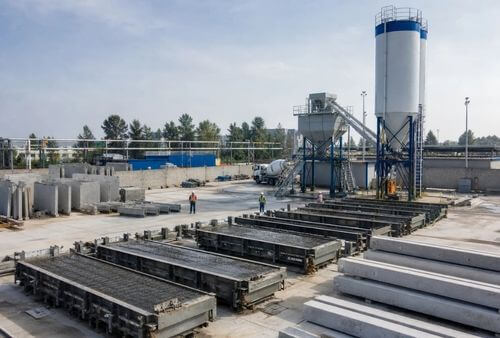

Precast Concrete Precast components and standardized production.
WHY CHOOSE SIMAMIX
Why Choose SIMAMIX
.jpg)
Core Components, Quality and End-to-End Service
For an overseas buyer, a batching plant is a long-term production investment. This section shows the equipment foundation, quality process, factory capability and full project support behind the product.
Core Components & Advantages

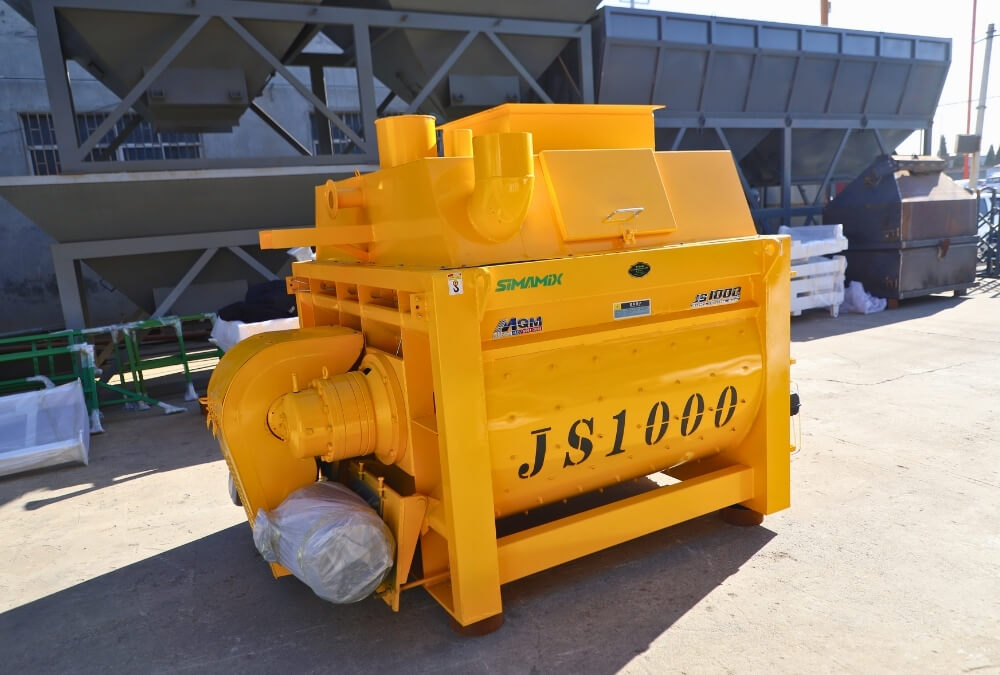

Twin-Shaft Mixer Uniform mixing, reliable output and long-term wear-part support.

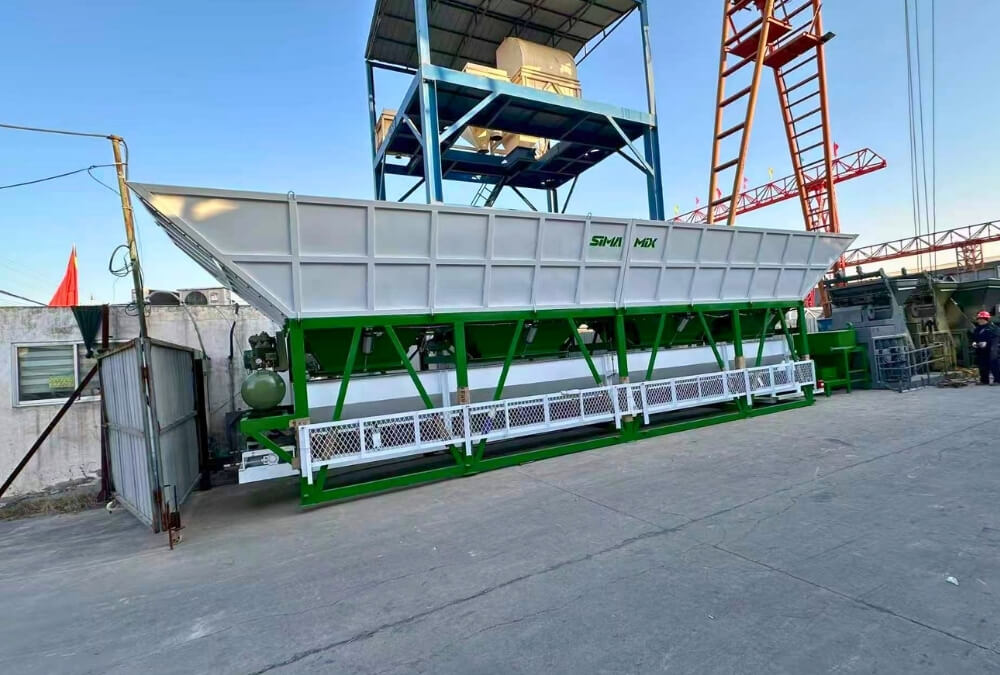

Aggregate Batching Machine Accurate proportioning for different aggregate materials.

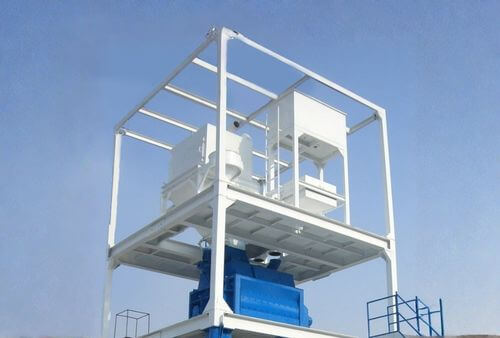

Weighing System Accurate aggregate, cement, water and additive weighing according to the selected configuration.

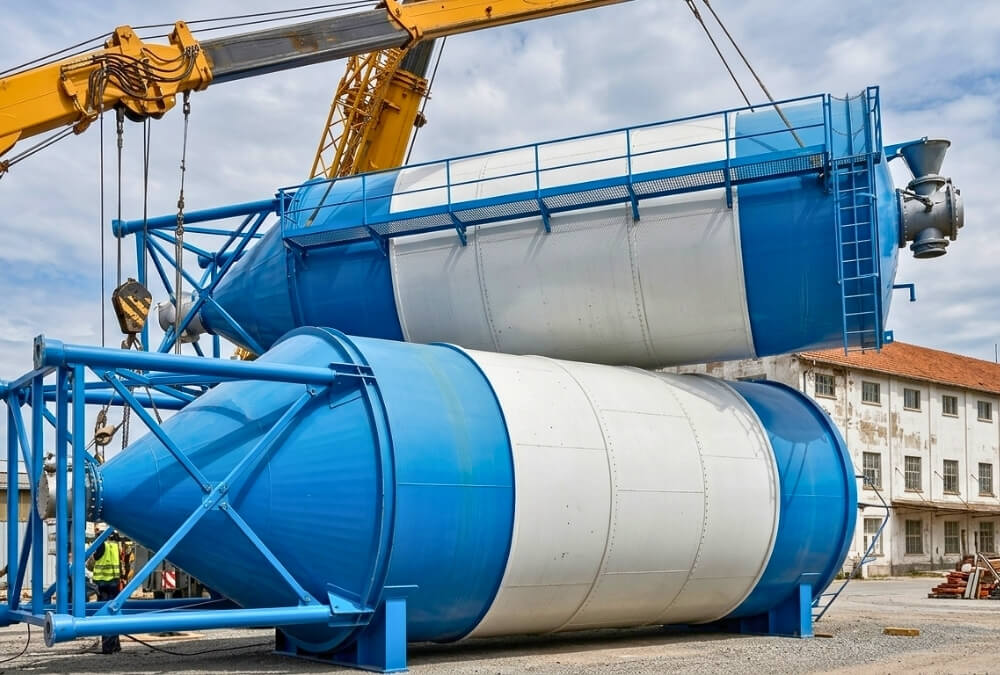

Cement Silo Bulk cement storage supports continuous concrete production.

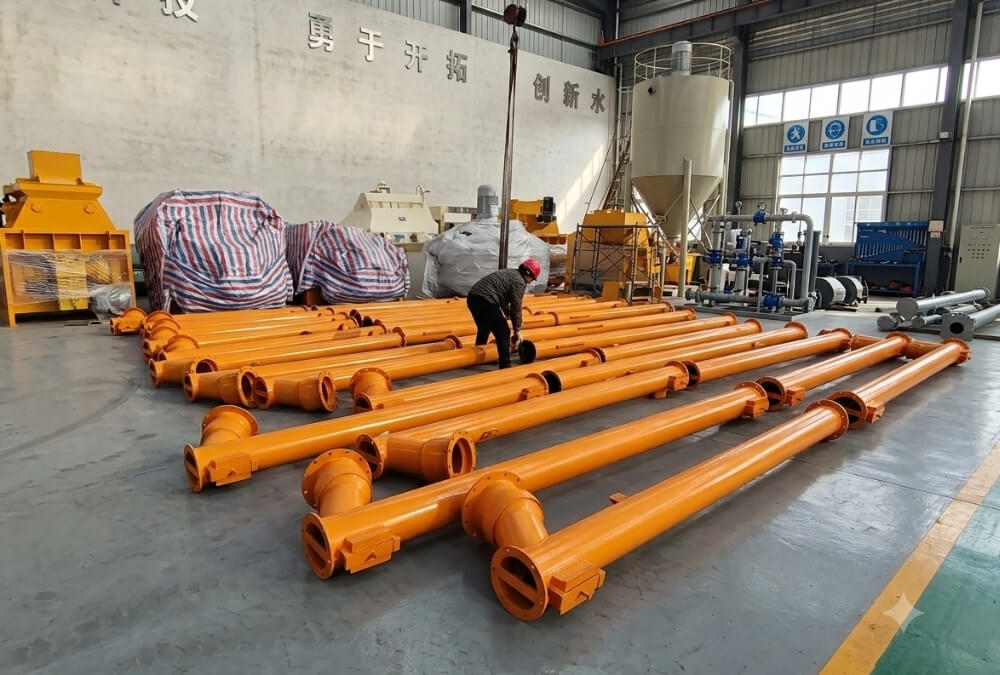

Screw Conveyor System Enclosed screw conveying supports stable transfer of cement and powder materials.

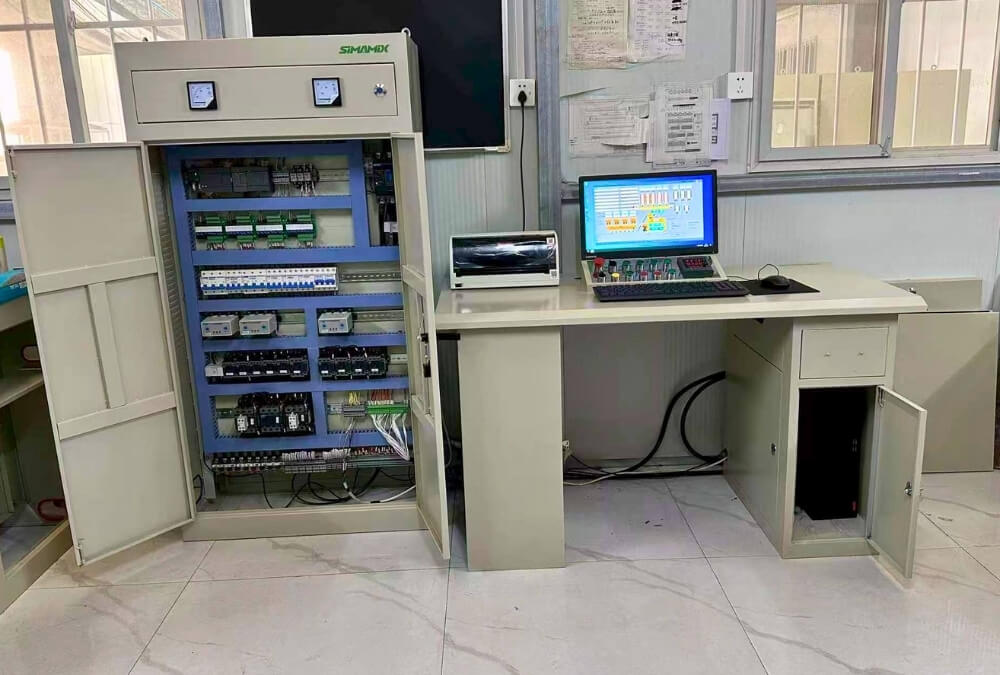

Control System Manual, semi-automatic and automatic operation options.
Quality Control
01 / Incoming Material Inspection Check incoming materials and key components before assembly.
02 / Assembly Component Assembly Confirm structure, mixer and system assembly.
03 / Testing System Testing Test control, weighing and operating systems.
04 / Dispatch Pre-shipment Check Confirm configuration and shipment documents.
Factory Display

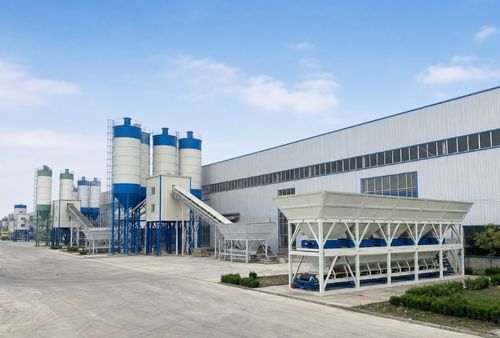

Factory Overview Plant structures, silos and batching equipment in an organized production yard.

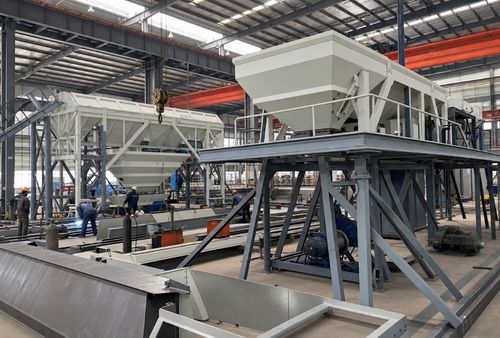

Equipment Assembly Steel frames, hoppers and conveyor components prepared in the workshop.

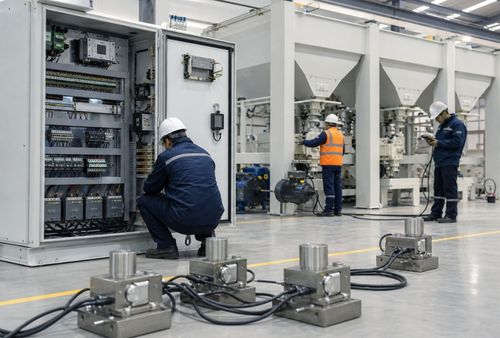

Quality Testing Control cabinets, weighing sensors and system checks before dispatch.

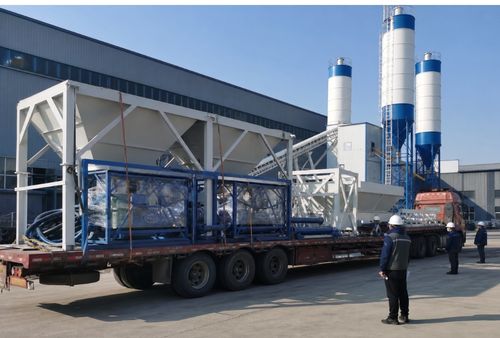

Dispatch Preparation Plant modules secured for loading, delivery and project installation.
End-to-End Service
Pre-sales Site conditions, capacity planning, layout and configuration.

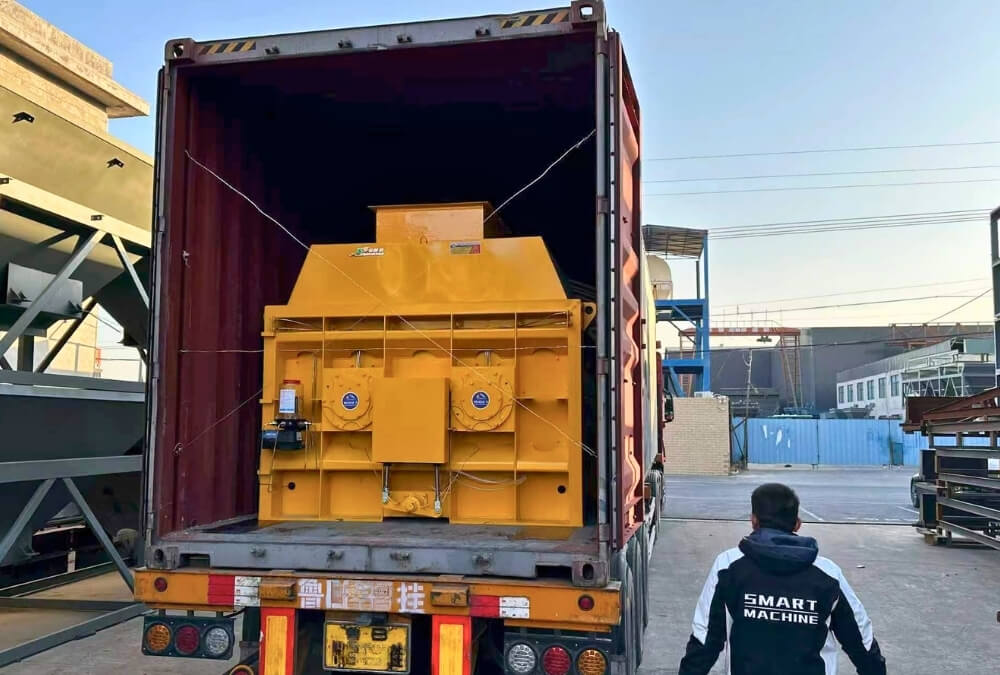

In-sales Production progress, inspection, packing and shipment coordination.

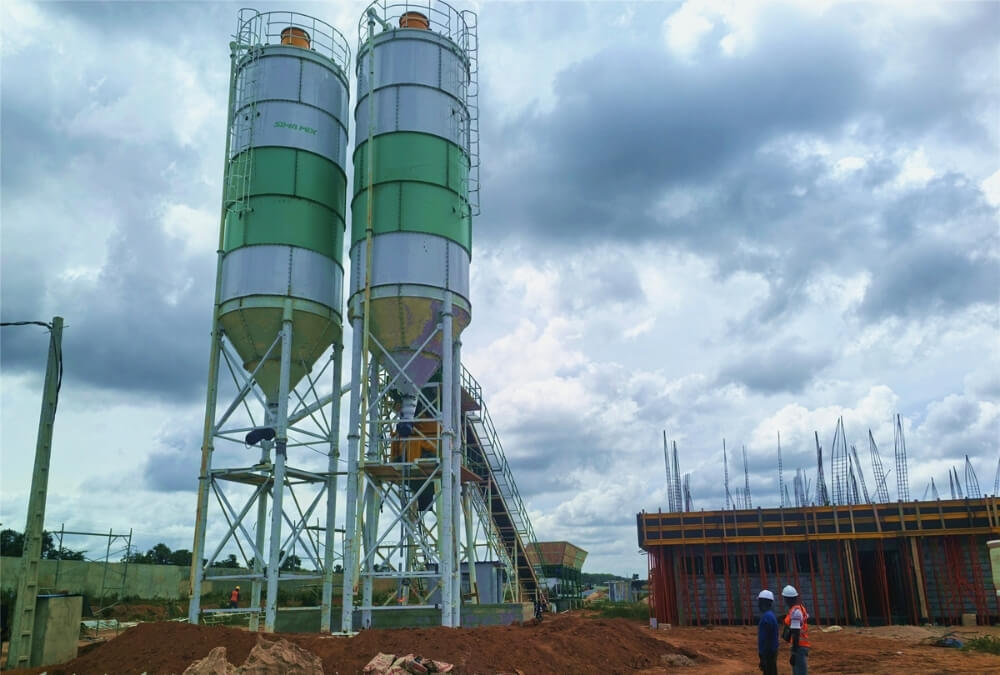

After-sales Installation, commissioning, training, troubleshooting and spare parts.
CASE & CERTIFICATION
Project Cases & Certification
Evidence for Your Purchase Decision
Use this section to show real project delivery, customer locations, factory evidence and valid technical documents. The following case text is a draft and should be replaced with verified project information.

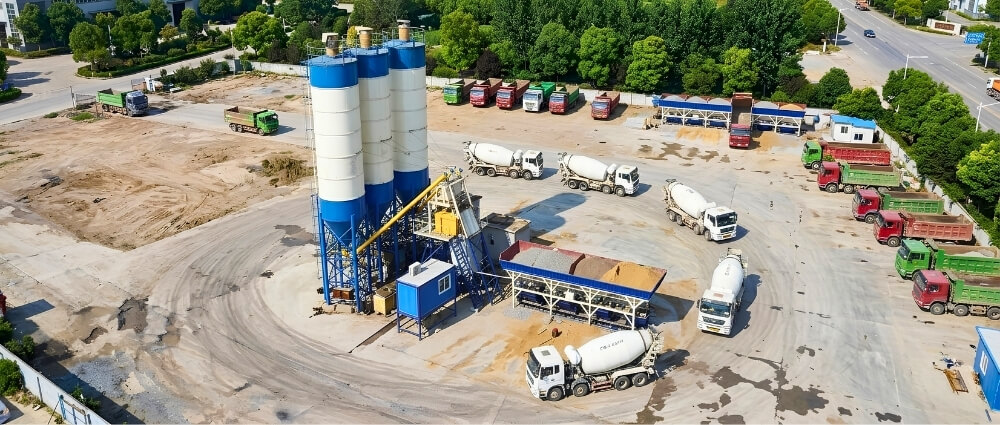

HZS50 Plant Project
- Model
- HZS50
- Use
- Commercial concrete production
- Status
- Malaysia
HZS25 Plant Project
- Model
- HZS25
- Use
- Building or municipal construction
- Status
- Vietnam
HZS60 Plant Project
- Model
- HZS60
- Use
- Road, bridge or infrastructure project
- Status
- Saudi Arabia
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting,
E-mail: info@simamix.com and Telephones:+86 18538068019.
FAQ
FAQ Before Purchase
Hopper Type Stationary Concrete Batching Plant FAQ
Not sure which model? Send your capacity, site and project duration. We will recommend an HZS model and configuration.
Worried about overseas installation? End-to-end service can cover planning, delivery, installation guidance, commissioning and training.
Concerned about downtime? Confirm spare parts, technical support and maintenance arrangements before quotation.
What is a hopper type concrete batching plant?
It uses a skip hoist to lift aggregates into the mixing system. It is suitable for fixed construction projects that need reliable production with a practical site layout.
Which model should I choose: HZS25, HZS35, HZS50 or HZS60?
Choose according to required output, project type, available site area, concrete mix and production schedule. The final recommendation should be confirmed by the technical team using your project information.
What information is needed for a correct quotation?
Provide project location, required output, project type, power supply, available site area, expected start date, concrete mix requirements and whether installation support is needed.
What does End-to-End Service include?
End-to-end service can include pre-sales planning, equipment configuration, production follow-up, quality inspection, shipment coordination, installation guidance, commissioning, operator training, troubleshooting and spare parts support.
What is included in the quotation?
The quotation depends on the selected model and configuration. Ask the sales engineer to specify the mixer, aggregate system, cement silo, screw conveyor, control system, spare parts, shipping and installation scope.
Need a Reliable HZS Solution?
Send your project requirements and receive a model recommendation, configuration discussion and quotation.
