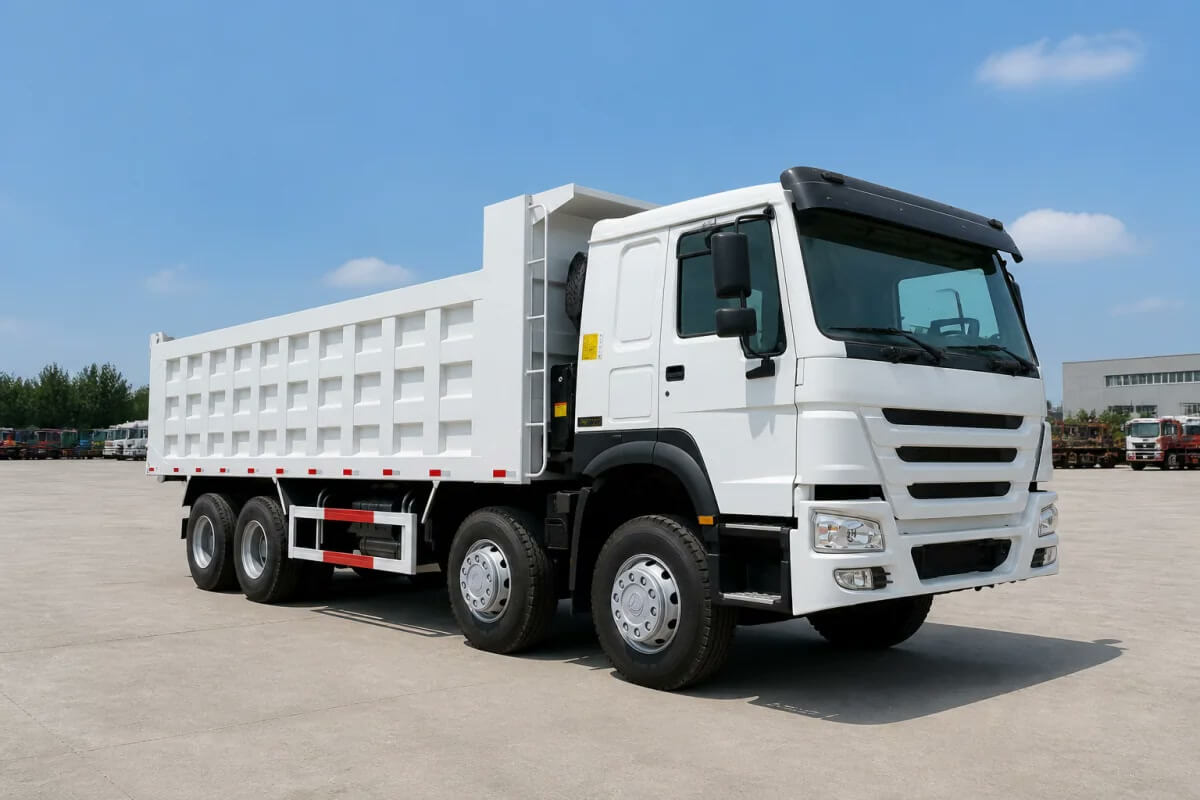

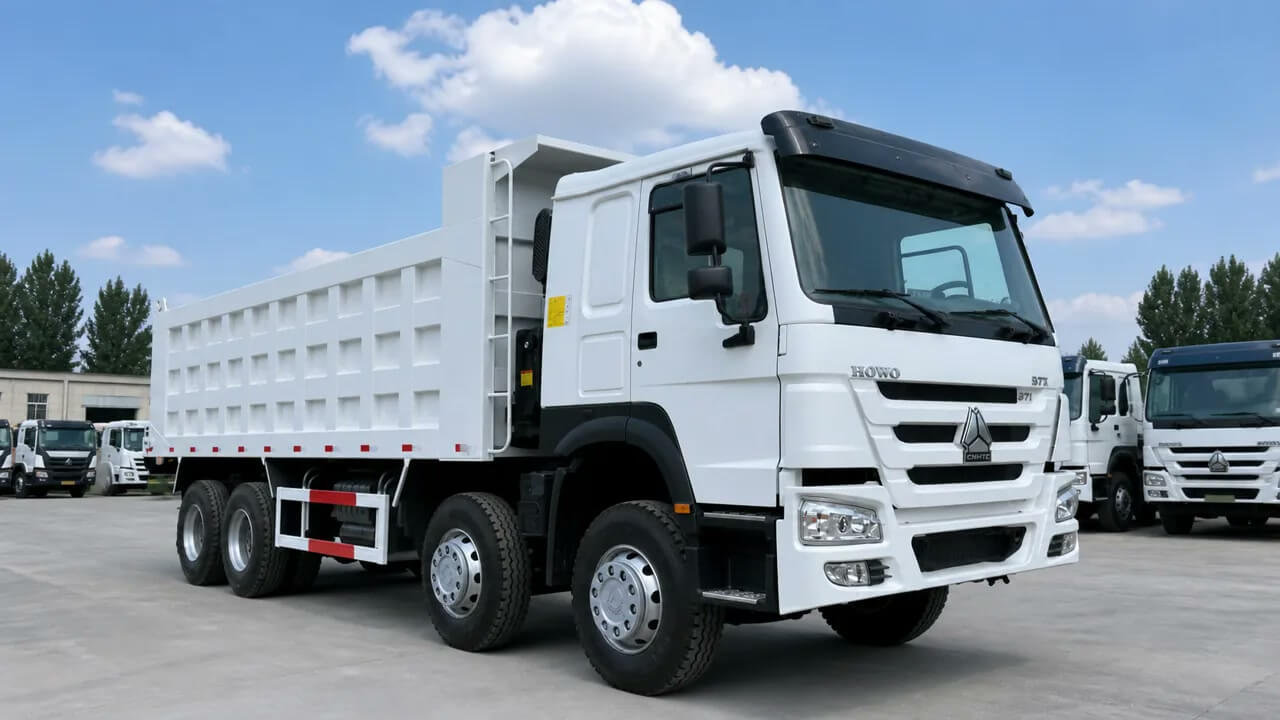

Front Three-Quarter
The front view highlights the cab, lights, bumper and twin steering axles.
Overview & Specifications

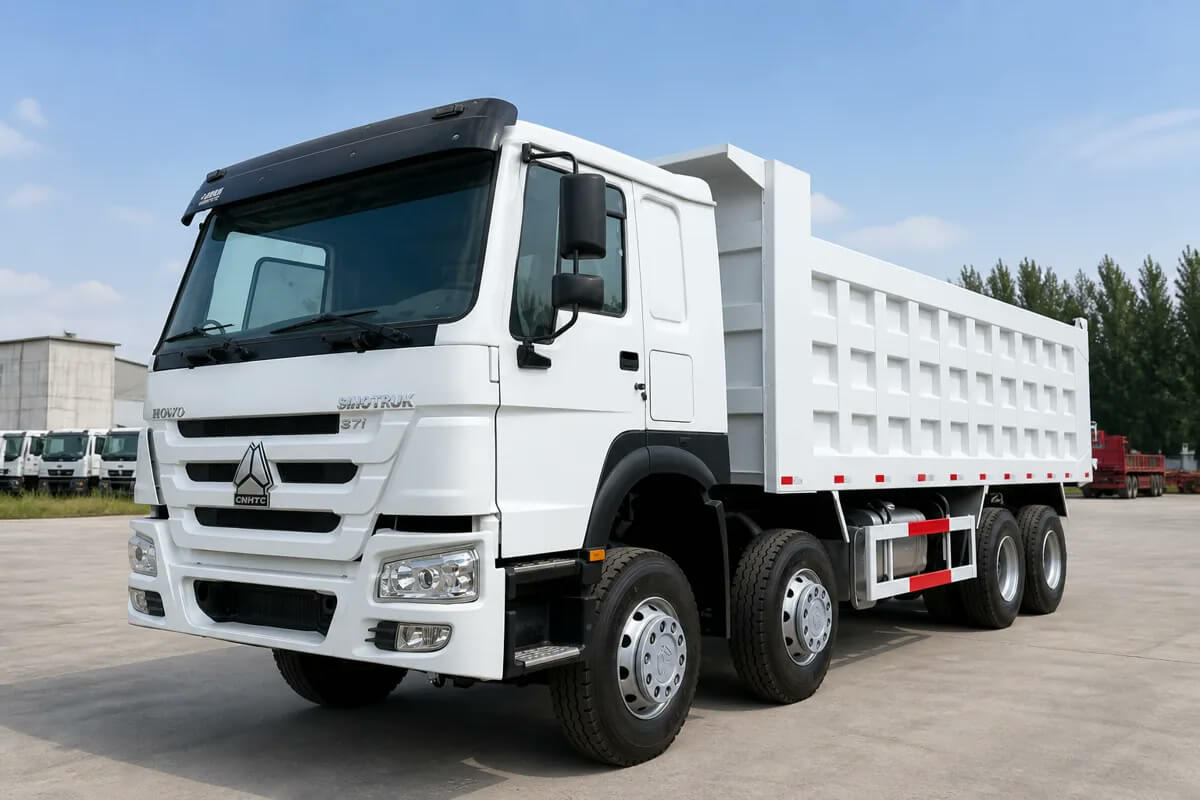

Refurbished 8x4 tipper overview
Refurbished HOWO 371HP 8x4 Tipper Dump Truck
The refurbished HOWO 371HP 8x4 tipper dump truck combines a four-axle chassis with a long dump body for material transport in mining, quarry, earthwork and construction applications.
Because refurbished stock varies, the exact production year, mileage, VIN, body dimensions, axle ratings, tire condition and restoration scope must be confirmed against the selected vehicle before contract.
371 HPWD615.47 reference engine
8x4Four-axle tipper layout
HW1971010 forward + 2 reverse
7.3 m BodyTypical configuration
Vehicle-specific confirmation: Each available truck can be matched with its VIN, current photos, plate details, cold-start video and dump-body lifting test before order confirmation.
Reference Specification
| System | Reference / field to confirm |
|---|---|
| Product type | Refurbished HOWO 371HP 8x4 Tipper Dump Truck |
| Drive / axle layout | 8x4; 4 axles; two steering axles and tandem drive axles |
| Driving position | LHD or RHD available; confirm the selected stock unit and destination requirement |
| Production year | 2017–2022 |
| Mileage | Vehicle-specific; provide a dated odometer photo and running video before contract |
| VIN / stock number | Assigned per selected stock unit; match the VIN plate, quotation and invoice |
| Cab | HOWO HW76 single-sleeper cab with air conditioner, typical configuration |
| Engine | SINOTRUK WD615.47 diesel; inline 6-cylinder; turbocharged and intercooled |
| Rated power | 371 HP / 273 kW at 2,200 rpm, reference; verify the engine plate |
| Transmission | HW19710 manual gearbox; 10 forward + 2 reverse; PTO |
| Steering | ZF hydraulic power-assisted steering, reference configuration |
| Front axles | HF9 × 2; published rating 9,000 kg per axle; verify axle plates and condition |
| Rear axles | HC16 × 2; 16,000 kg × 2 reference; verify ratio, locks and condition |
| Braking | Dual-circuit compressed-air service brake; spring parking brake; engine exhaust brake |
| Suspension | Leaf-spring suspension; actual spring packs, bushings and alignment to be inspected |
| Tires | 12.00R20 radial tires; 12 road tires + 1 spare; confirm brand, tread and condition |
| Fuel tank | 300 L reference; confirm actual material and capacity |
| Dump body | Approx. 7,300 × 2,300 × 1,500 mm reference; 8 mm floor / 6 mm sides; front lifting |
| Body volume | Approx. 25 m³ geometric reference; confirm internal measurements and tailgate design |
| Overall dimensions | Published configurations: approx. 10,245 × 2,496–2,550 × 3,400–3,450 mm; measure the selected unit |
| Curb / gross / legal payload | Commonly advertised payload 25–30 t; confirm the vehicle plate and destination regulations |
| Restoration scope | Provide the inspected, repaired and replaced item list for the selected VIN |
| Color | White as shown; custom refinishing available by written agreement |
Reference values were compared across multiple published HOWO 371HP 8x4 configurations. Differences in wheelbase, body size and overall dimensions are normal; the physical truck, documents and signed quotation take precedence.
Truck Gallery
Multiple exterior views present the cab, four-axle chassis, dump body, tailgate and hydraulic lifting system.

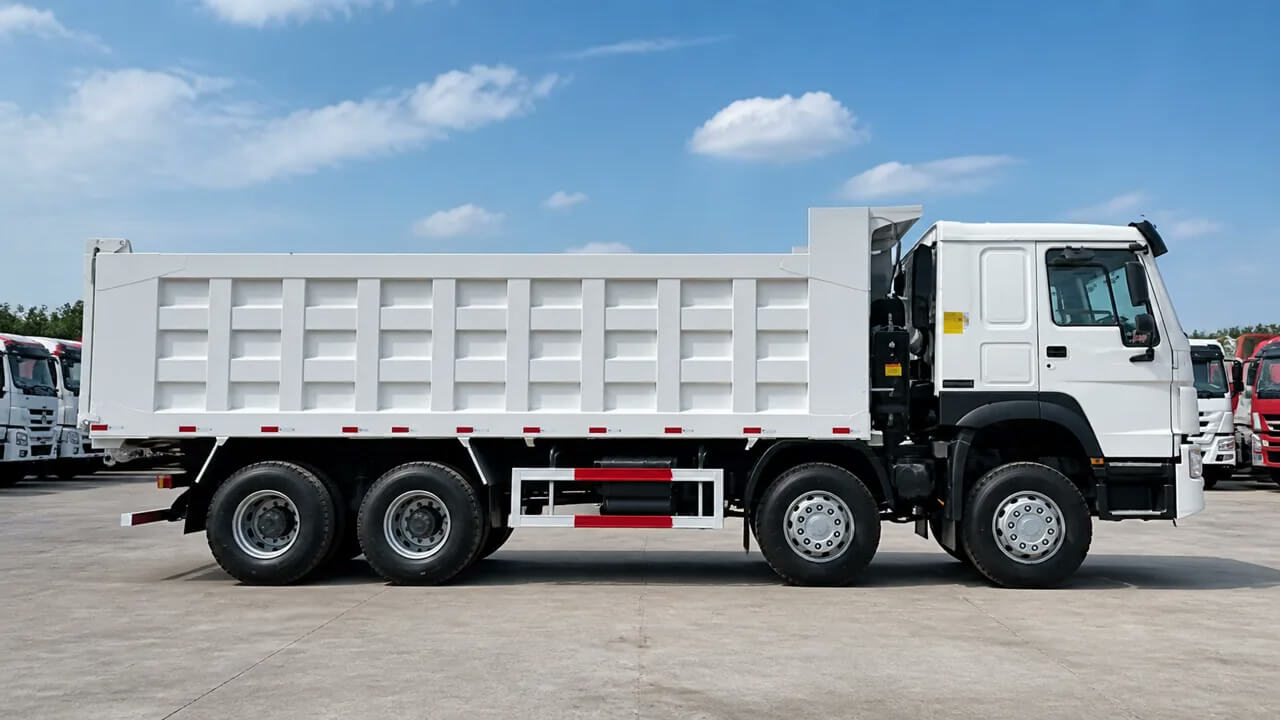

Full Side Profile
The side profile presents the four-axle layout, chassis and dump-body length.

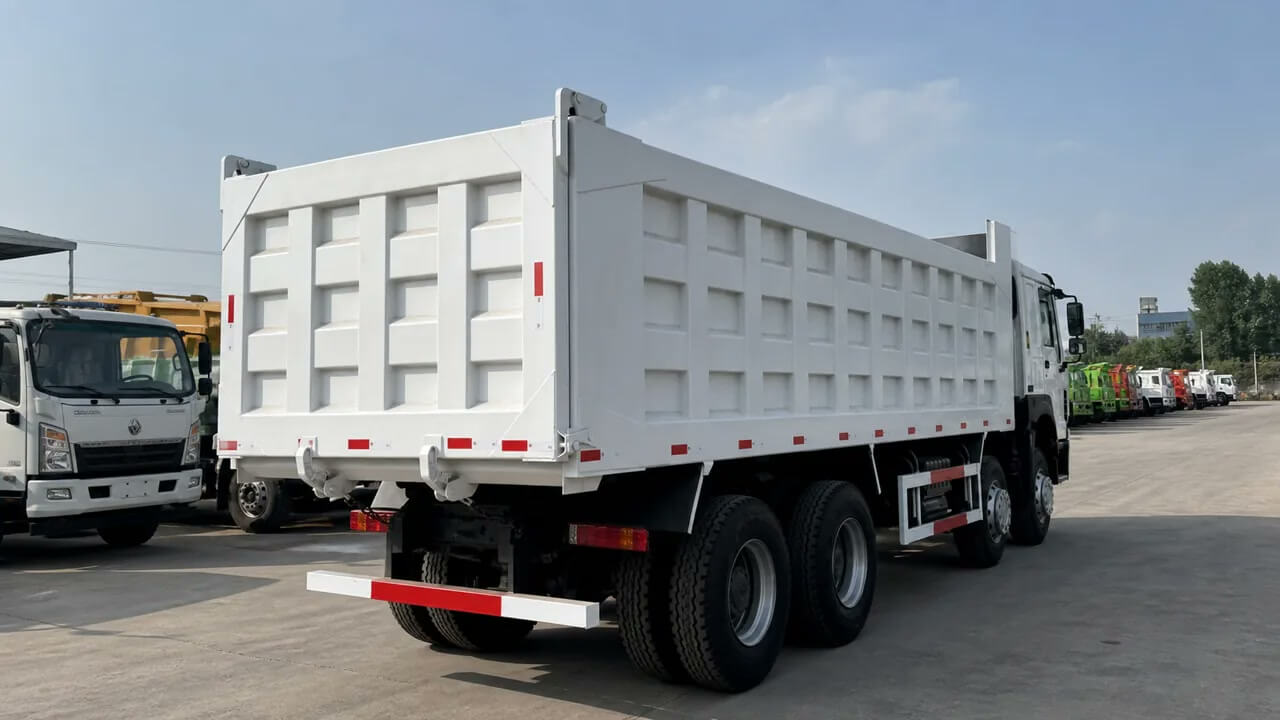

Rear & Tailgate
The rear view highlights the tailgate, rear lights, tires and chassis structure.

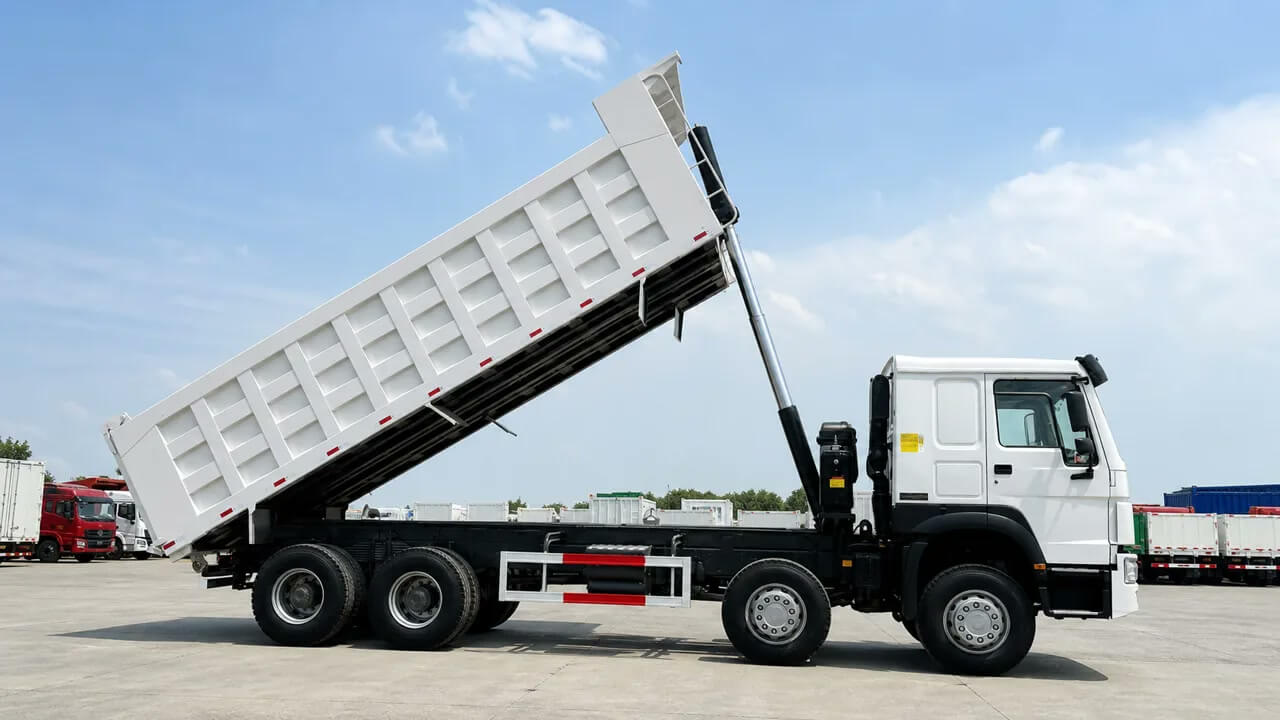

Raised Body & Hydraulics
The raised-body view presents the lifting cylinder, subframe and hinge points.
Core Systems
Vehicle-specific condition review
Six Core Systems to Inspect
The 8x4 layout adds a second steering axle and a longer chassis/body combination. The main systems are inspected for function, condition and compatibility with the selected application.

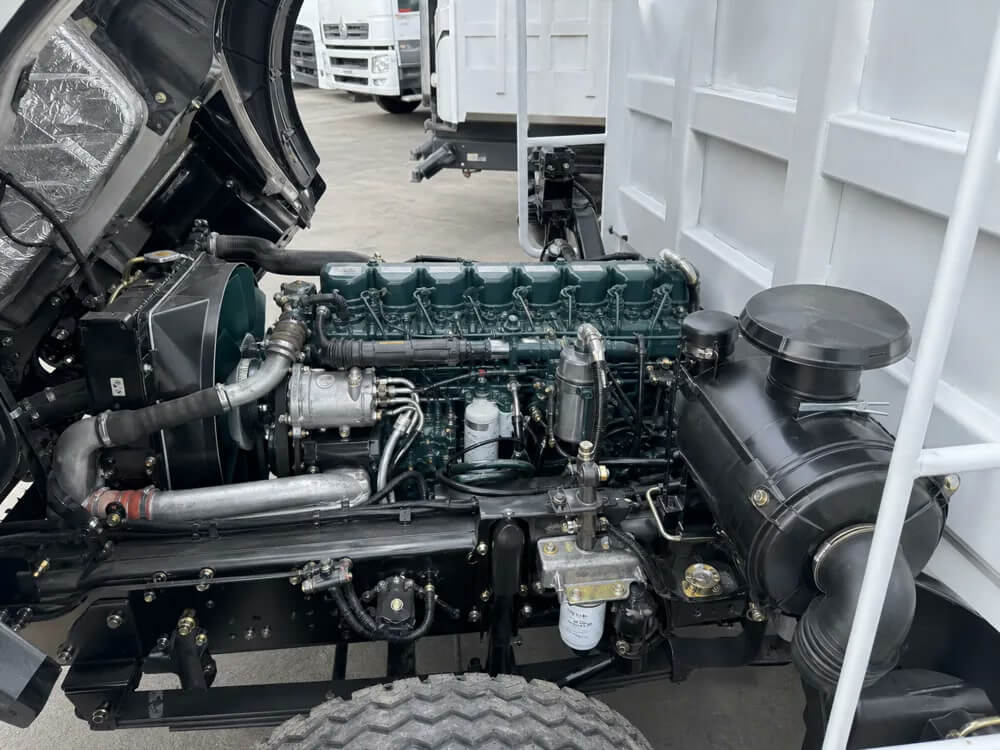

01 / ENGINE
WD615.47 Engine
Record the engine number and show a cold start before cosmetic preparation.
- Oil and coolant leakage points
- Cold-start exhaust and idle
- Engine plate and service evidence

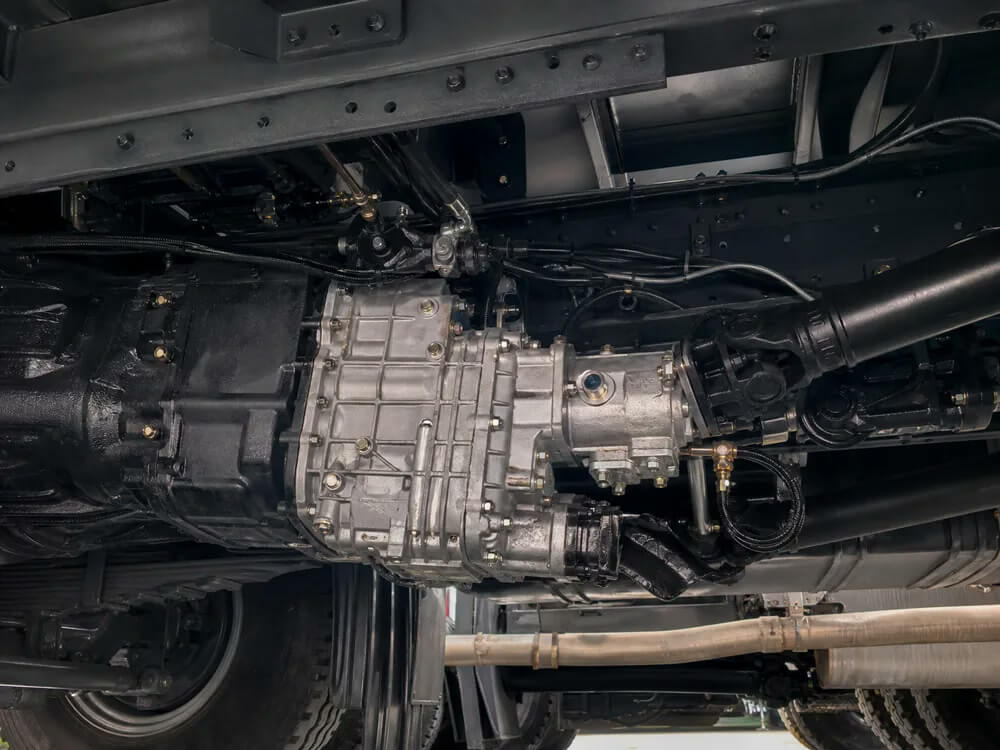

02 / TRANSMISSION
HW19710 & PTO
Confirm gear selection, clutch operation, PTO engagement and visible leakage.
- 10 forward + 2 reverse
- Clutch and selector response
- PTO / hydraulic pump interface

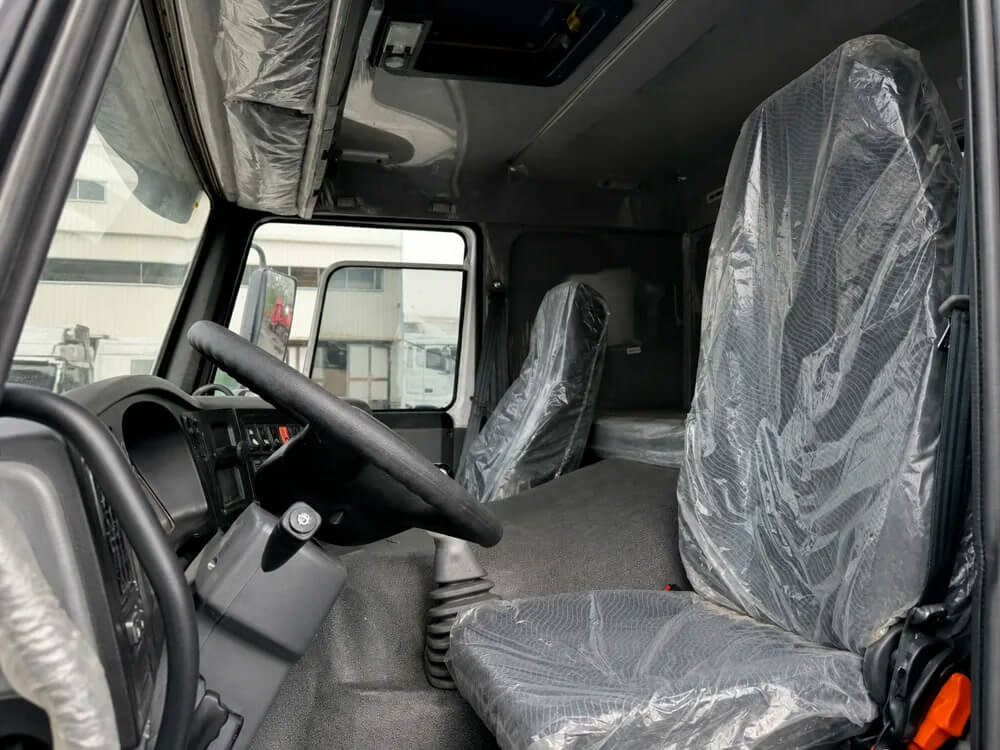

03 / CAB
HW76 Cab
Show the dashboard, odometer, seats, sleeper, air conditioner and electrical functions.
- Dashboard warning lamps
- Seat, glass and trim condition
- Lights, wipers and air conditioner

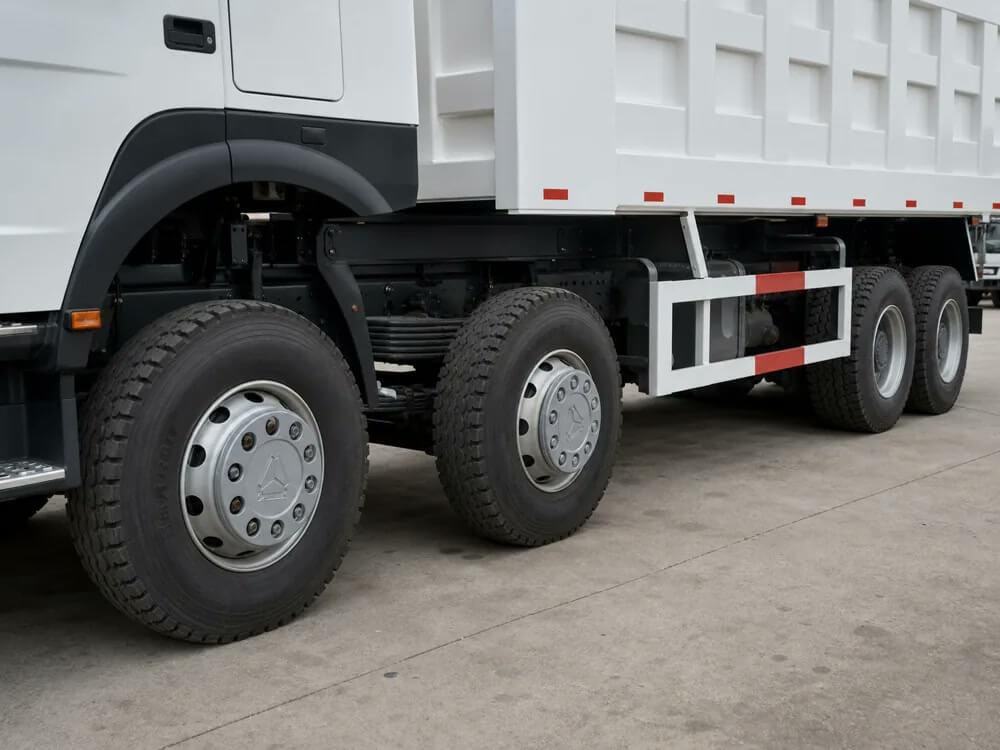

04 / FRONT AXLES
Two Steering Axles
Show both front axles, steering linkages, hubs, springs and tire wear patterns.
- Kingpins, tie rods and hubs
- Brake condition and air lines
- Alignment and tire wear

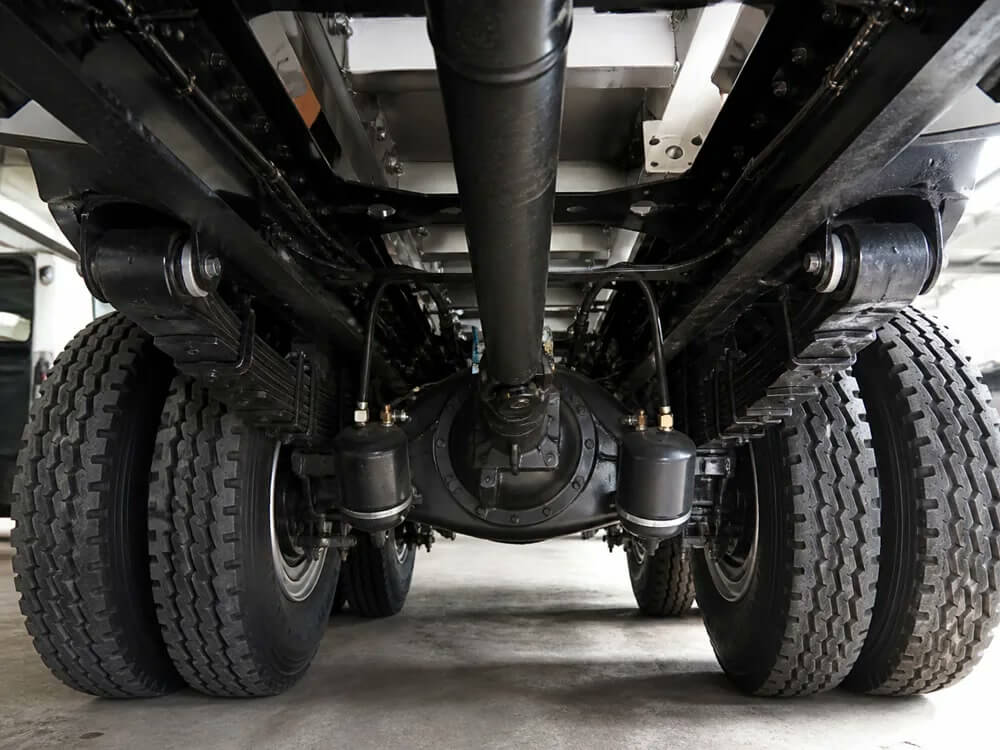

05 / REAR AXLES
HC16 Tandem Drives
Inspect differentials, locks, hubs, balanced suspension and spring packs.
- Oil leakage and hub temperature
- Inter-wheel / inter-axle locks
- Spring packs, U-bolts and bushings

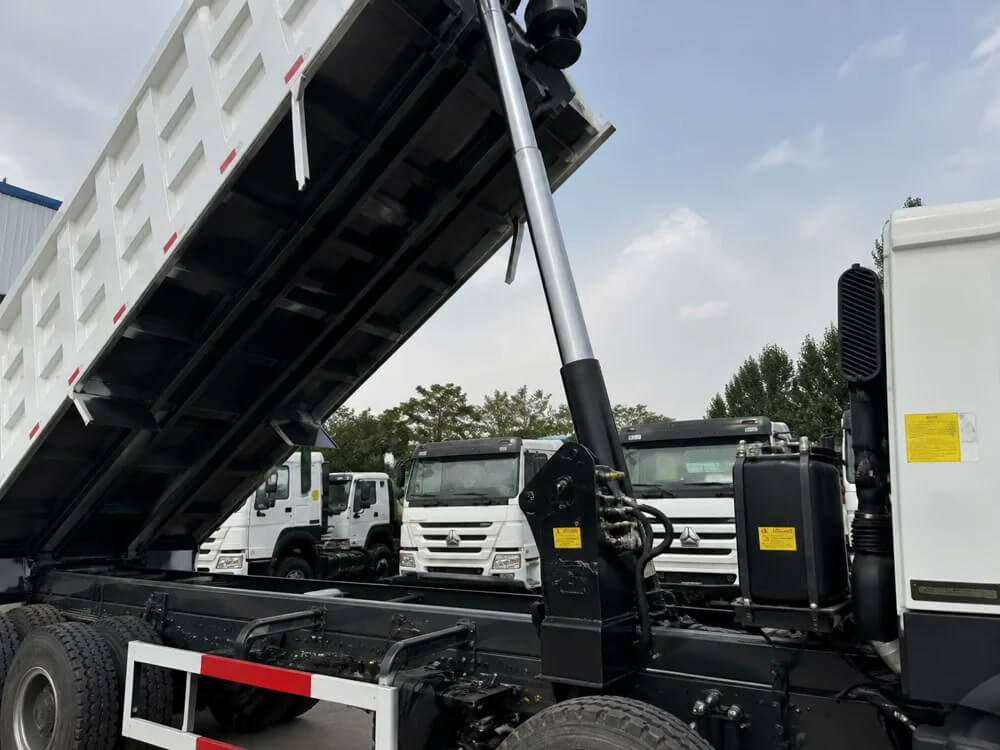

06 / TIPPER SYSTEM
Body & Hydraulic Lift
Inspect the body floor, side walls, subframe, hinges, tailgate and front lifting system.
- Floor / side-wall thickness check
- Welds, hinges and tailgate lock
- Full lifting and lowering test
Inspection support: Vehicle-specific photos, videos and component details can be supplied with the quotation for the selected stock unit.
Restoration & Verification
Restoration & verification
01 / INTAKE
02 / MECHANICAL
03 / BODY & CAB
04 / FINAL TEST
Show the Work, Not Only the Finished Paint
Our restoration workflow follows each truck from intake through repair and final testing, with vehicle-specific records linked to its VIN or SIMAMIX stock number.
Identity & Condition
Record VIN, engine number, year, mileage and pre-restoration condition. Photograph frame rails, dump body, four axles and cab before work begins.
Inspect & Repair
Check engine, gearbox, steering, both front axles, tandem drives, brakes, suspension, hydraulic pump, cylinder and PTO.
Restore & Refinish
Document structural welding, rust treatment, body-floor work, tailgate repair, cab refurbishment, electrical work and paint preparation.
Verify Before Dispatch
Perform cold start, dashboard, gear, brake, steering, lights, road/yard and full dump-body lift tests; close out the job record.
Vehicle-Specific Evidence
Inspection evidence can include before-and-after photos, workshop records, cold-start checks, lifting tests and component identification.

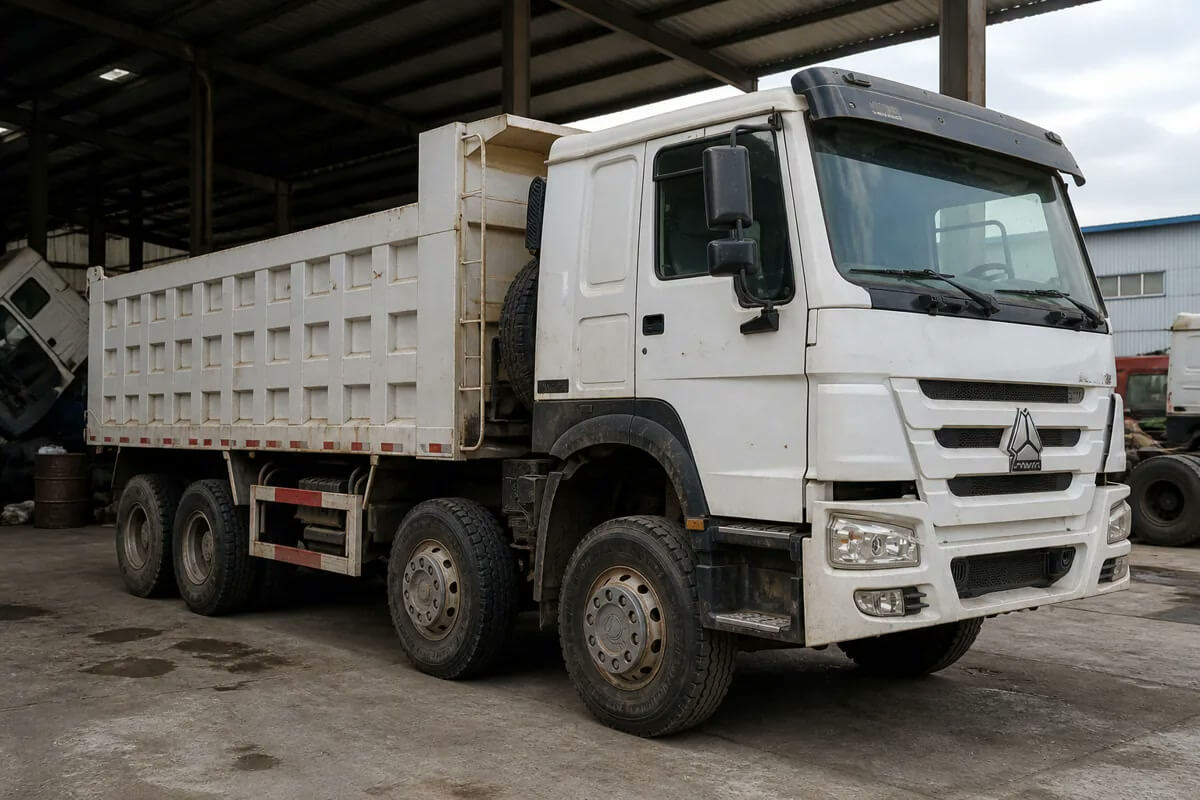

BEFORE
Intake Condition
The intake record covers the complete vehicle and its condition before restoration.

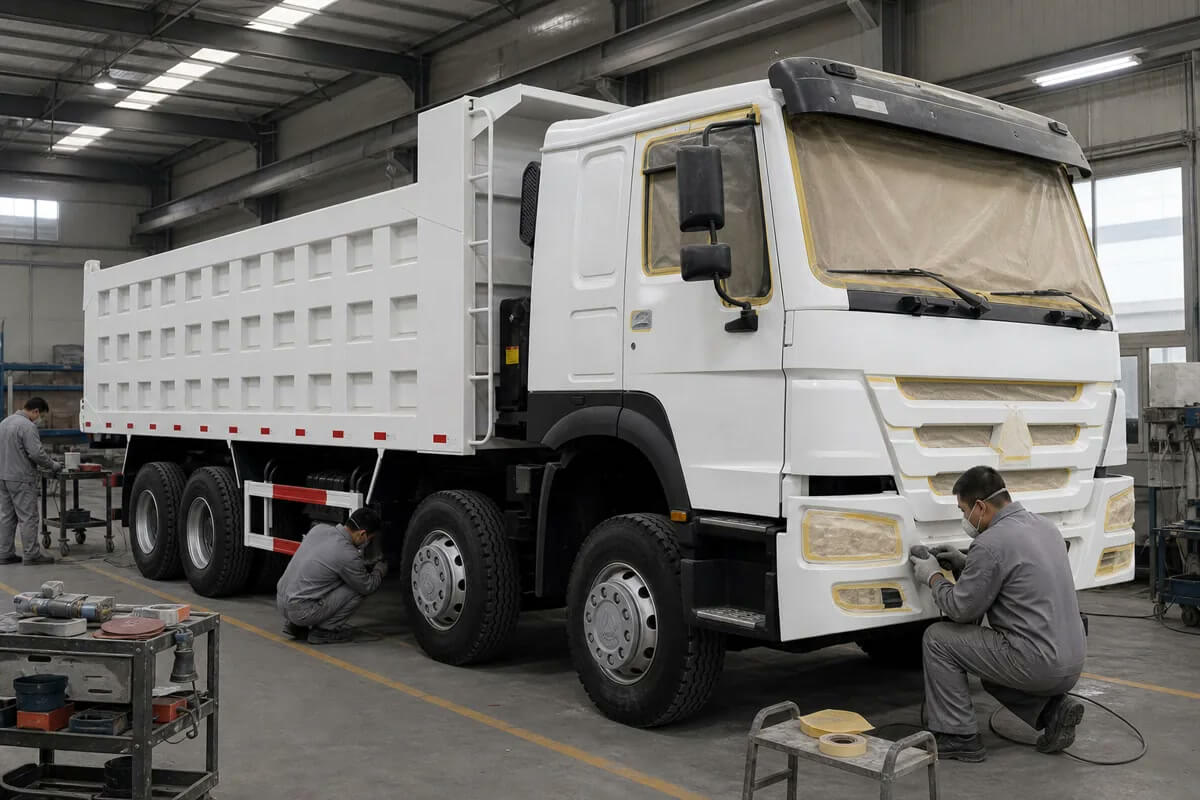

DURING
Workshop Process
Workshop records document inspection, repair and component replacement work.

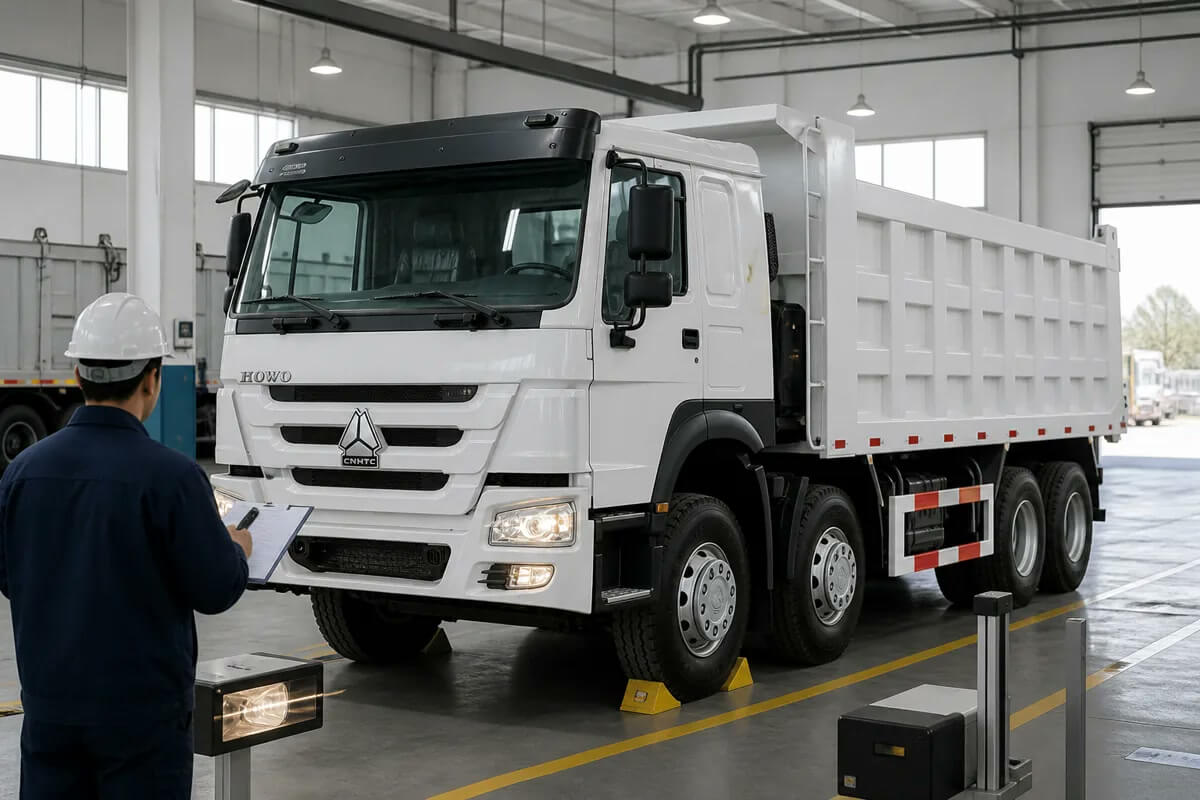

AFTER
Finished & Tested
The finished vehicle is checked after the mechanical and functional inspection.

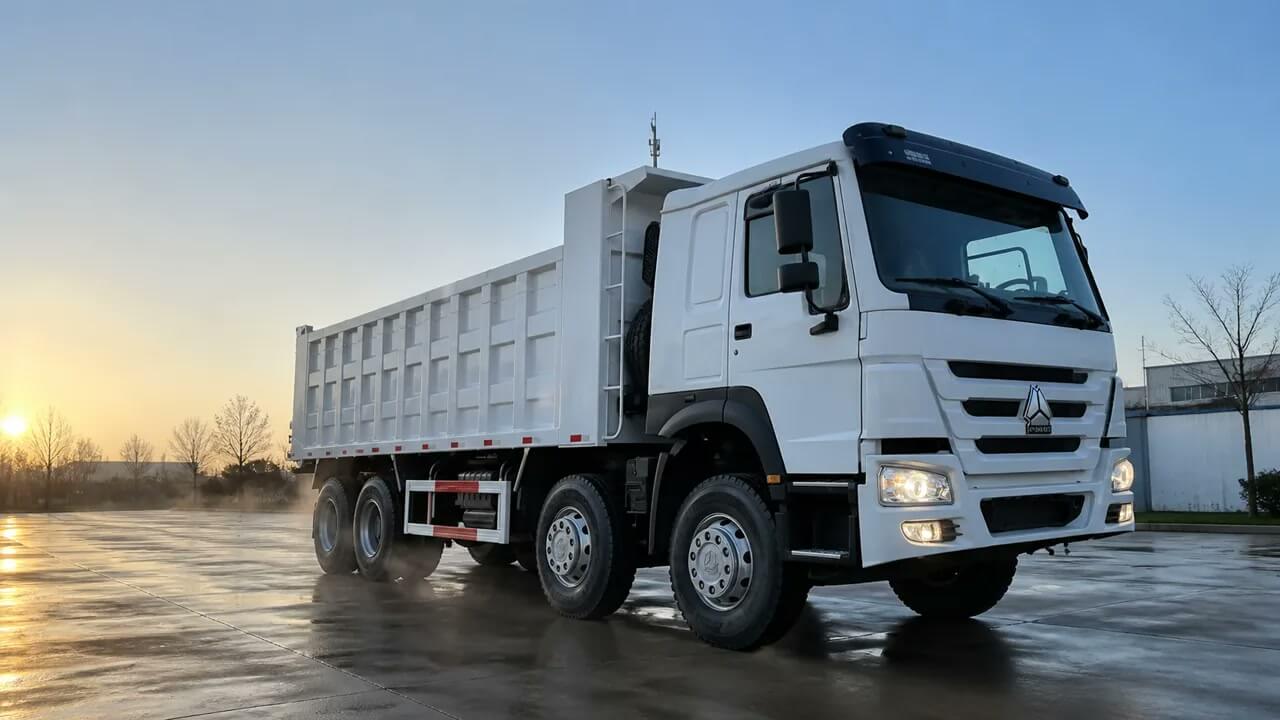

VIDEO 01
Cold-Start Inspection
The cold-start check covers start-up, idle stability, exhaust and dashboard indicators.
VIDEO 02

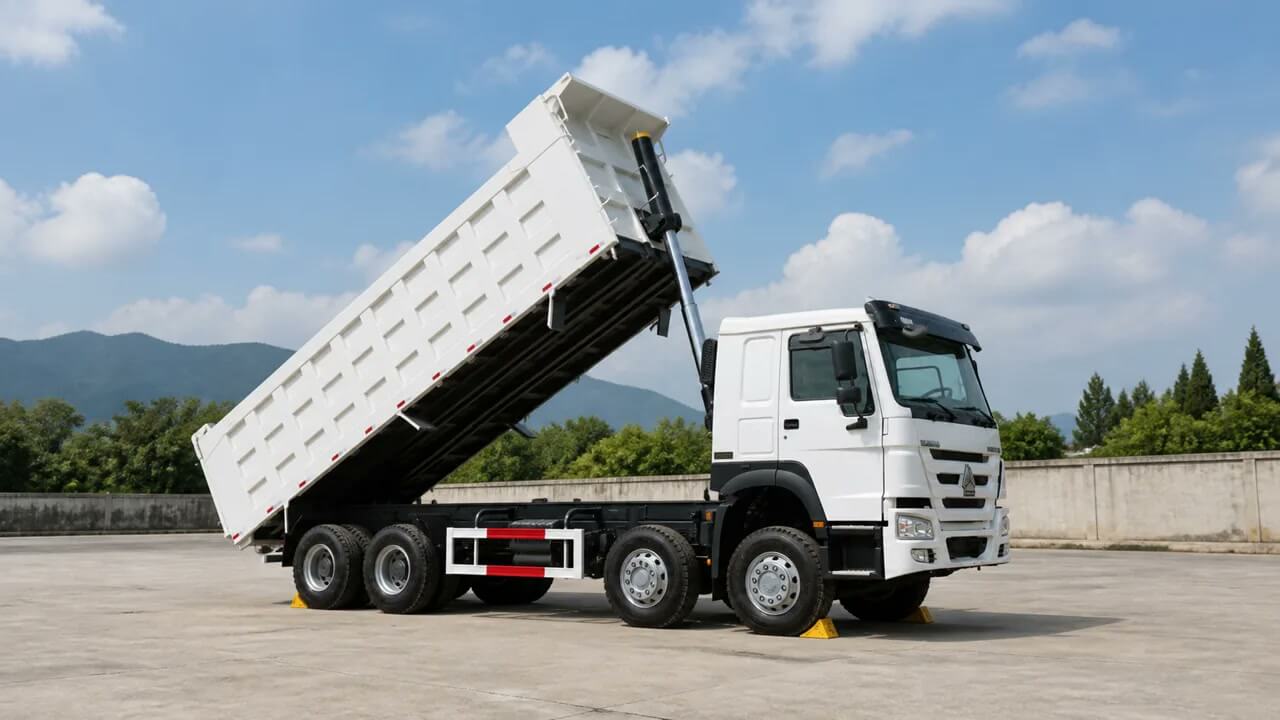

Dump-Body Lift Test
The lifting test checks PTO engagement, lifting, holding, lowering and hydraulic operation.

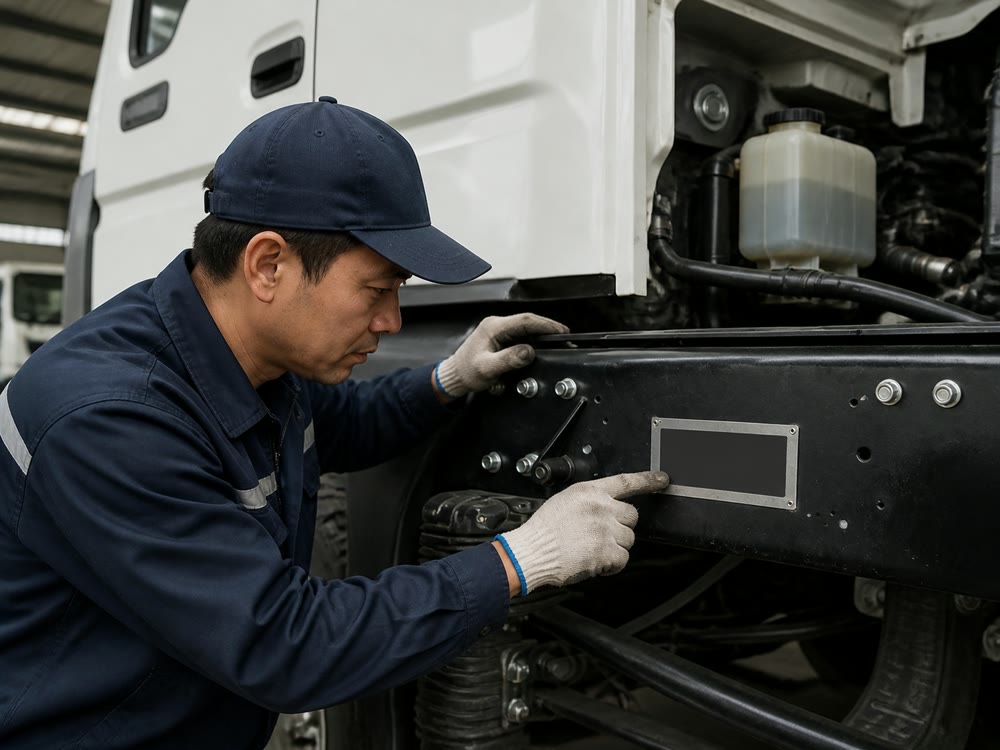

IDENTITY
Plate & Component Record
Vehicle identity and component details can be matched to the quotation and invoice.
Restoration Record Fields
The vehicle-specific restoration file can include the following information.
Stock Number / VINVehicle identity
Intake DateInspection start
Completion DateFinal test date
Repaired ItemsWork performed
Replaced PartsParts list / brands
Inspection ReportEvidence reference
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting,
E-mail: info@simamix.com and Telephones:+86 18538068019.
Factory, Shipping & FAQ
Factory, buyer inspection & shipment
BEFORE ORDER
BEFORE PAYMENT
BEFORE SHIPMENT
AFTER ARRIVAL
Complete the Evidence Chain
From workshop preparation and buyer inspection to loading and dispatch, the service process supports vehicle-specific confirmation and export delivery.

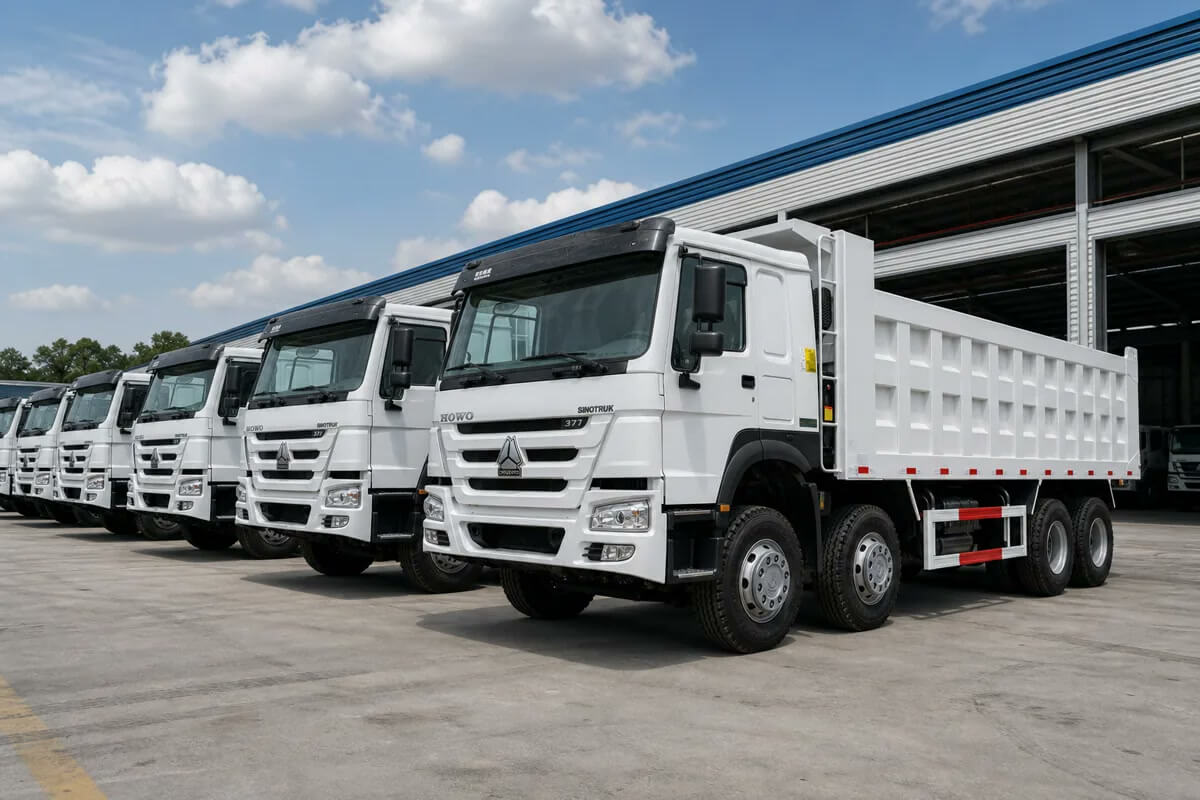

01 / WORKSHOP
Factory & Restoration Area
Inspection, preparation and restoration work is completed in the truck workshop.

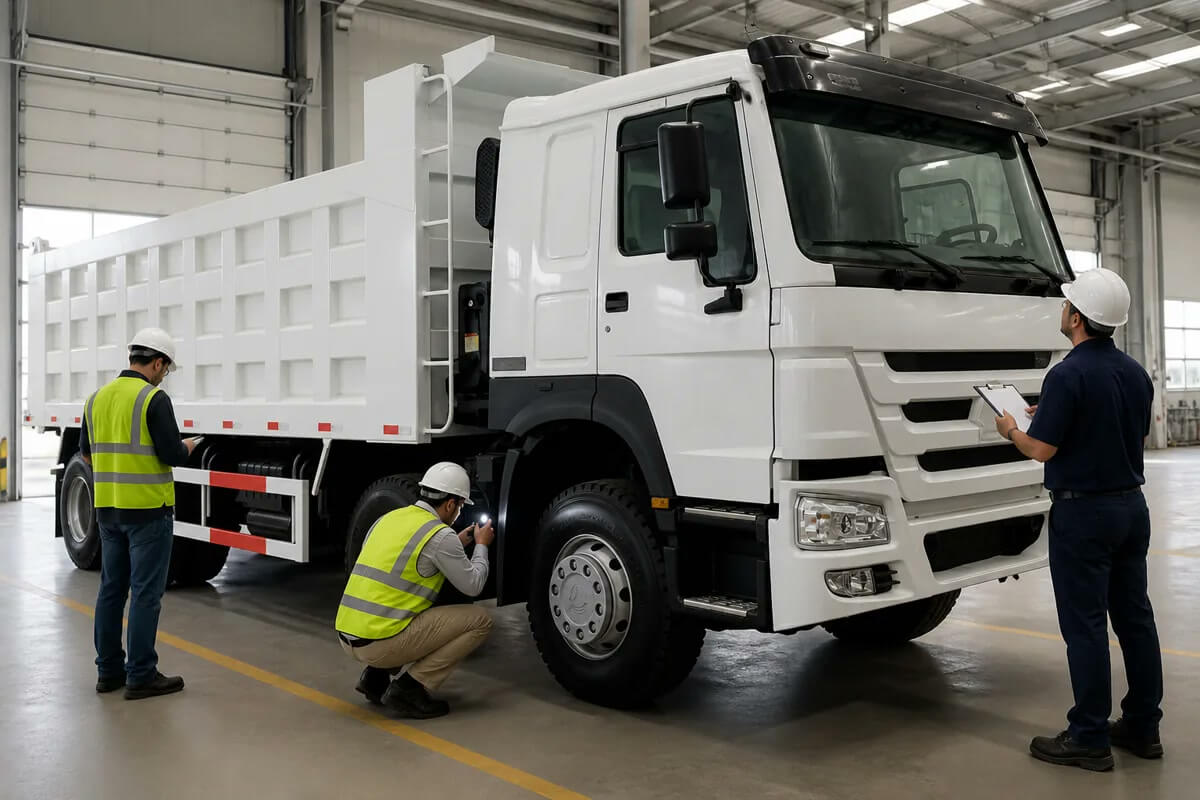

02 / INSPECTION
Vehicle-Specific Review
Buyer or third-party inspection can cover the VIN, cab, engine, chassis, axles and dump body.

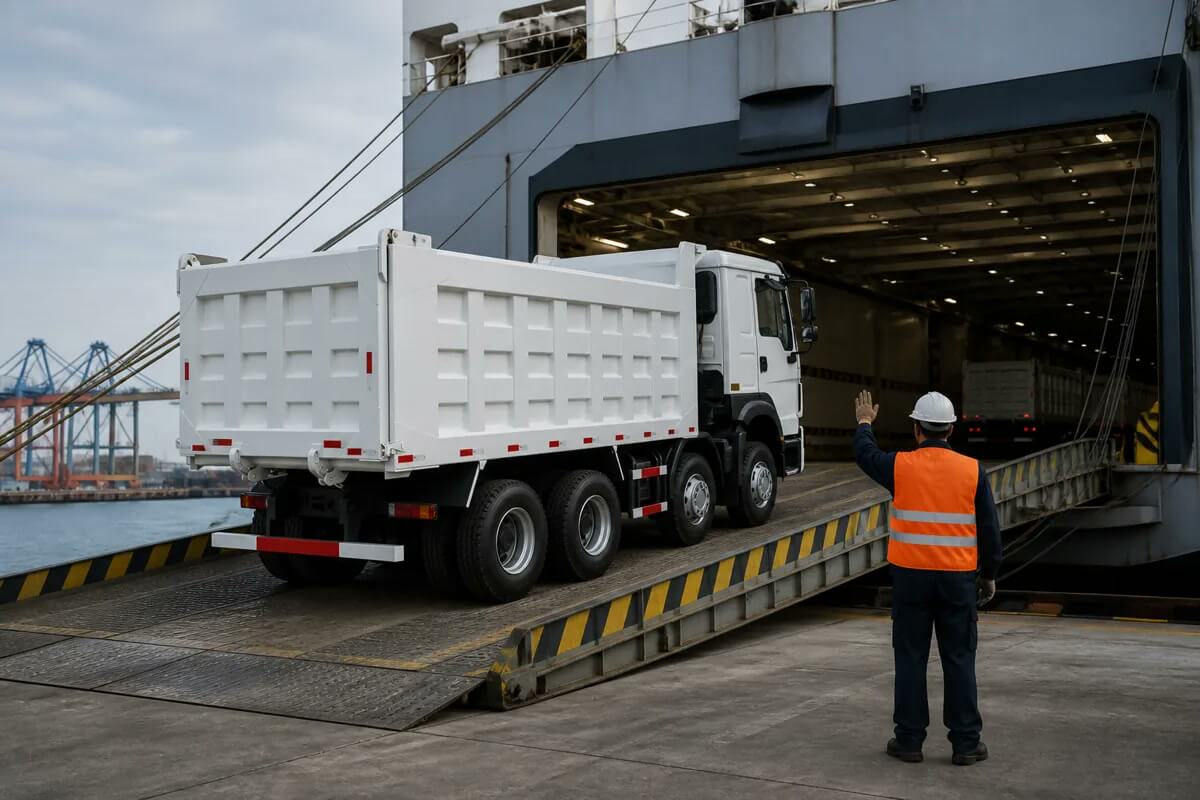

03 / SHIPMENT
Loading & Dispatch
Pre-loading checks, securing and dispatch are coordinated with the shipping documents.
Support Scope to Confirm in the Quotation
Vehicle Matching
Destination, route, material, required body size, legal payload and stock availability.
Inspection Evidence
VIN photos, cold-start and lift-test videos, restoration record and live/third-party inspection.
Dispatch Check
Final specification, accessories, spare parts, loading method and export document scope.
Service & Parts
Written warranty terms, exclusions, parts package, technical support channel and response process.
Refurbished HOWO 371HP 8x4 Tipper Dump Truck FAQ
Are all refurbished HOWO 371HP 8x4 tipper trucks configured the same?
No. Production year, wheelbase, body size, axle ratio, tires, mileage and restoration scope can vary. Confirm the exact truck by VIN, current photographs, physical measurements and the signed specification.
How can I confirm the exact truck configuration?
The production year, mileage, overall dimensions, axle configuration and restoration scope can be confirmed through current photos, videos, measurements and vehicle documents.
Can I inspect the exact vehicle before balance payment?
Request current photos and video, a live video inspection, a factory visit or an independent inspection. The agreed inspection scope should be written into the quotation or contract.
What should the restoration record include?
It should identify the VIN/stock number, show before/during/after condition, list repaired or replaced parts, and include engine, brake, steering, axle, drivetrain and hydraulic-test evidence.
How should payload be confirmed?
Do not infer legal payload from cargo-body volume or an advertised tonnage. Confirm the vehicle plate, axle ratings, curb weight, gross vehicle weight and destination regulations.
What affects the final price?
Production year, mileage, mechanical condition, body size, restoration scope, tires, requested spare parts, quantity, destination and shipping method all affect the quotation.
Which shipping methods may be available?
Ro-Ro, bulk shipment or another suitable method can be discussed according to the truck's measured dimensions, destination, port conditions and vessel availability.
Is warranty or spare-parts support included?
Any warranty period, exclusions, spare-parts package and after-sales scope must be written into the quotation or contract for the exact truck.
Request Current 8x4 Stock, VIN Details & Inspection Video
Start with the exact truck so the quotation, restoration record and shipping plan all refer to the same vehicle.
Request Current Stock & VIN VideoInformation for a detailed quotation
Destination country and port
Required quantity
Material and route conditions
Preferred body size and payload requirement
Inspection preference
Spare-parts or service requirements
Destination country and port
Required quantity
Material and route conditions
Preferred body size and payload requirement
Inspection preference
Spare-parts or service requirements
