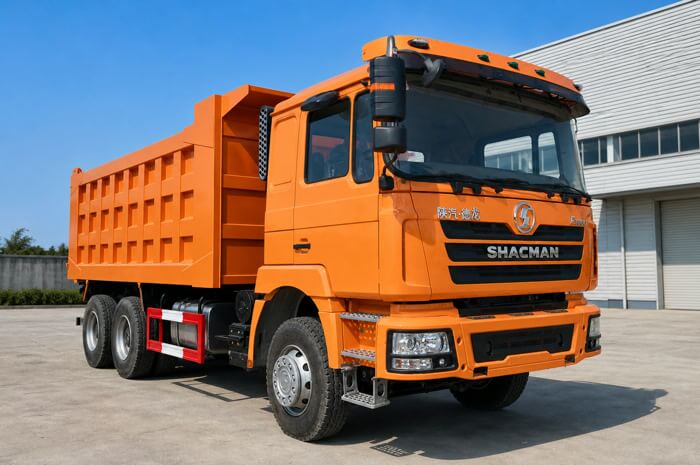

Front Three-Quarter
F3000 cab, bumper, steering axle and tandem rear-drive layout.
OVERVIEW & SPECIFICATIONS
Start with the job, then select the truck
Choose the Configuration Your Work Requires
Tell us the material, route, gradients, destination and required steering position. We will identify candidate F3000 6x4 tippers with the appropriate power, axle, tire and body configuration.
Each proposal identifies a selected truck and confirms its year, VIN, mileage, powertrain, body dimensions, condition and included refurbishment work.
F3000Heavy-duty tipper platform
6x4Three axles · tandem rear drive
300–550 PSPublished F3000 platform range
Rear TipperBody size confirmed per unit
What you receive before order confirmation: current truck photos, identity and specification details, agreed inspection media and a written list of included work.
Key Specifications to Confirm
| Decision point | What the selected-truck quotation should state |
|---|---|
| Truck identity | Stock number, VIN, production year, driving position and dated odometer record |
| Engine | Weichai or Cummins model, engine number, rated power and emission level shown on the plate |
| Transmission & PTO | FAST gearbox model, number of gears, clutch condition, PTO operation and shift-test result |
| Drive & axles | 6x4 layout, front and rear axle models, ratings, ratio and differential-lock configuration |
| Frame & suspension | Wheelbase, rail and crossmember condition, leaf springs, U-bolts and any recorded structural work |
| Tires & fuel tank | Tire size, brand, date, tread and matched pairs; fuel-tank material and capacity |
| Dump body | Measured internal length, width and height; floor and side thickness; liner, hinges and tailgate condition |
| Hydraulic system | Cylinder, PTO, pump and hose condition with a complete lift, hold and controlled-lowering test |
| Dimensions & weight | Measured overall dimensions, curb / gross weight data and destination transport limitations |
| Legal payload | Determined from the plate, axle and tire ratings, body, route and destination regulations |
| Included work | Items inspected, repaired, replaced and retained, plus the agreed final-test and evidence package |
Published platform data helps shortlist a truck. The selected vehicle, its identity documents and the signed quotation define the final supply.
Truck Gallery
These three views answer the fastest visual questions about cab condition, chassis length, axle layout and the lifting system.

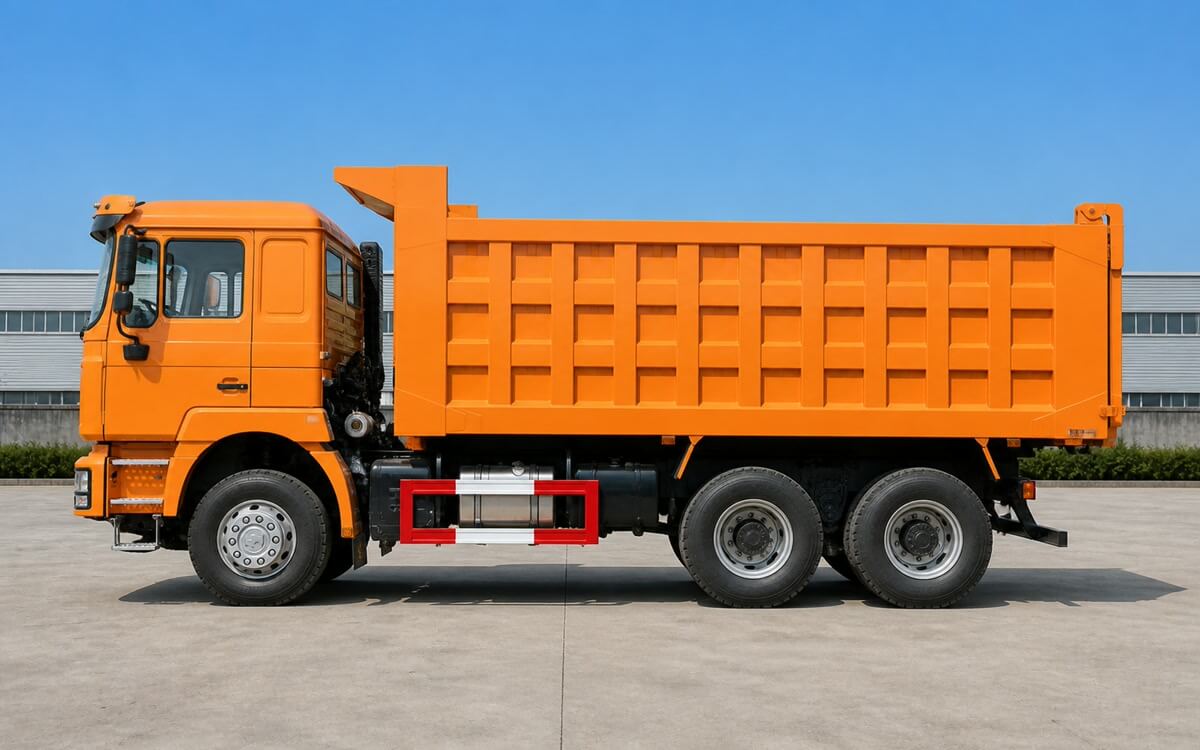

Full Side Profile
Wheelbase, chassis, fuel tank, body length and three-axle geometry.

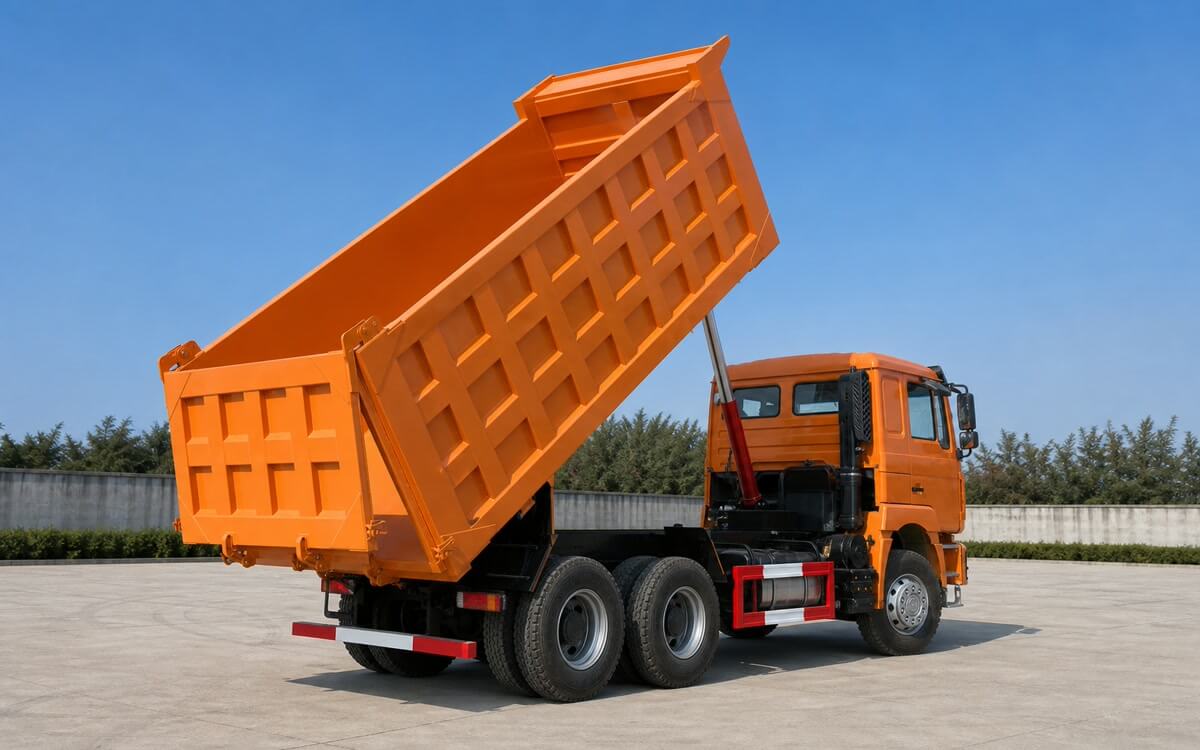

Raised Body & Hydraulics
Cylinder, subframe, hinge points, tailgate and tandem rear axles.
Vehicle matching across different export markets
Supporting Buyers Across Africa and Other Export Markets
Road conditions, import requirements, steering position, preferred power and shipping routes differ by destination. The page therefore explains a repeatable selection and verification process instead of presenting one fixed specification as suitable for every market.

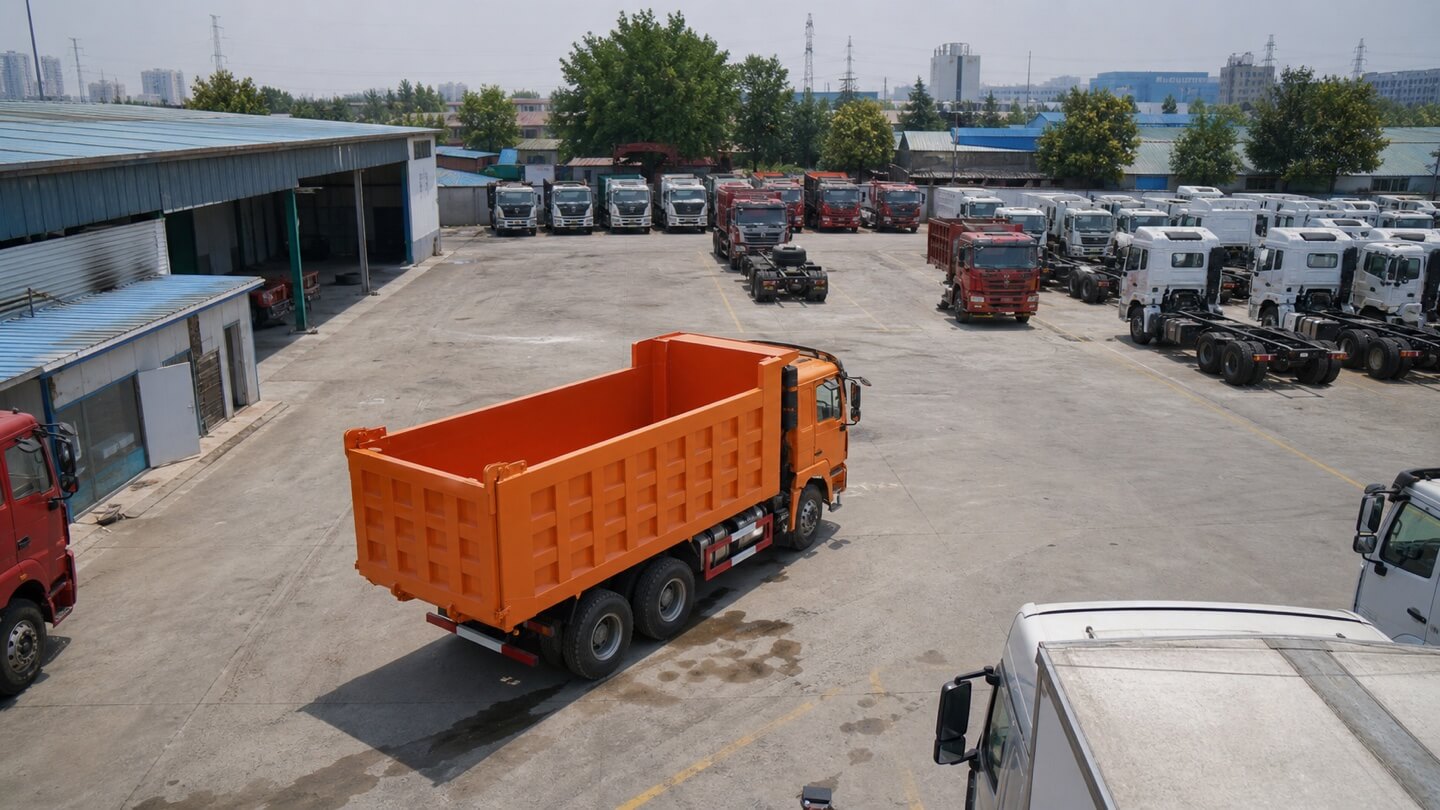

Why There Is No Fixed Online Stock List
Vehicle availability and condition change frequently. After receiving the buyer's requirements, SIMAMIX identifies suitable candidates and provides vehicle-level photos, identity details and inspection material for review.
This keeps the quotation tied to a real truck without presenting a yard overview as proof of one specific unit.
How Vehicle Matching Works
01 / REQUIREMENTSDescribe the ProjectSend the destination, material, road conditions, quantity and preferred configuration.
02 / CANDIDATESReview Suitable TrucksReceive candidate-unit photos, identity details and key specifications.
03 / CONFIRMATIONAgree Inspection & WorkConfirm tests, repairs, replacements, optional changes and final evidence.
04 / DELIVERYFinalize Quote & ShippingRecord price, readiness, documents, shipment, spare parts and support.
Market Requirements We Confirm
OPERATING FITWork & Road ConditionsMaterial, gradients, road surface, trip pattern and expected daily operation.
CONFIGURATIONVehicle SpecificationPower, emission, steering position, axles, tires, body and hydraulic system.
IMPORTDestination RequirementsConfirm local eligibility, documents and any buyer-appointed inspection needs.
EXPORTRoute & Delivery ScopeDeparture port, shipment method, freight boundary, spares and support terms.
Recognition should be supported by evidence: buyers may request relevant inspection, preparation or delivery references when the country, date and customer information can be disclosed and verified.
Technical reference: platform type, drive forms, engine brands, emission range and power range were cross-checked against the official SHACMAN F3000 product page. The selected truck and signed quotation define the final supply.
Technical content reviewed: .
CORE SYSTEMS
Condition first, paint second
Check the Systems That Drive Cost and Uptime
Focus the inspection on the powertrain, controls, running gear and lifting system—the areas that most affect readiness and future repair cost.

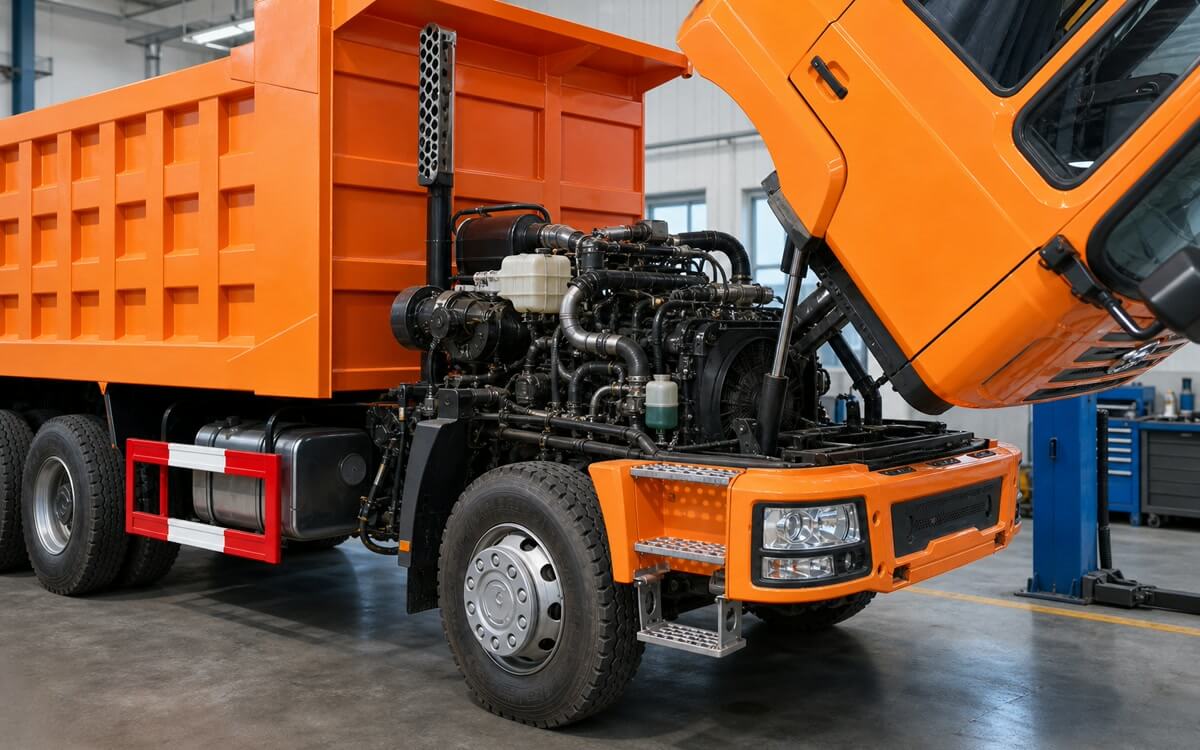

01 / ENGINE & COOLING
Weichai or Cummins Powertrain
Confirm the engine model and number before evaluating start-up, smoke, temperature, blow-by, fluid condition and leakage.
- Cold start from ambient condition
- Engine plate and oil-pressure record
- Cooling, intake and exhaust inspection

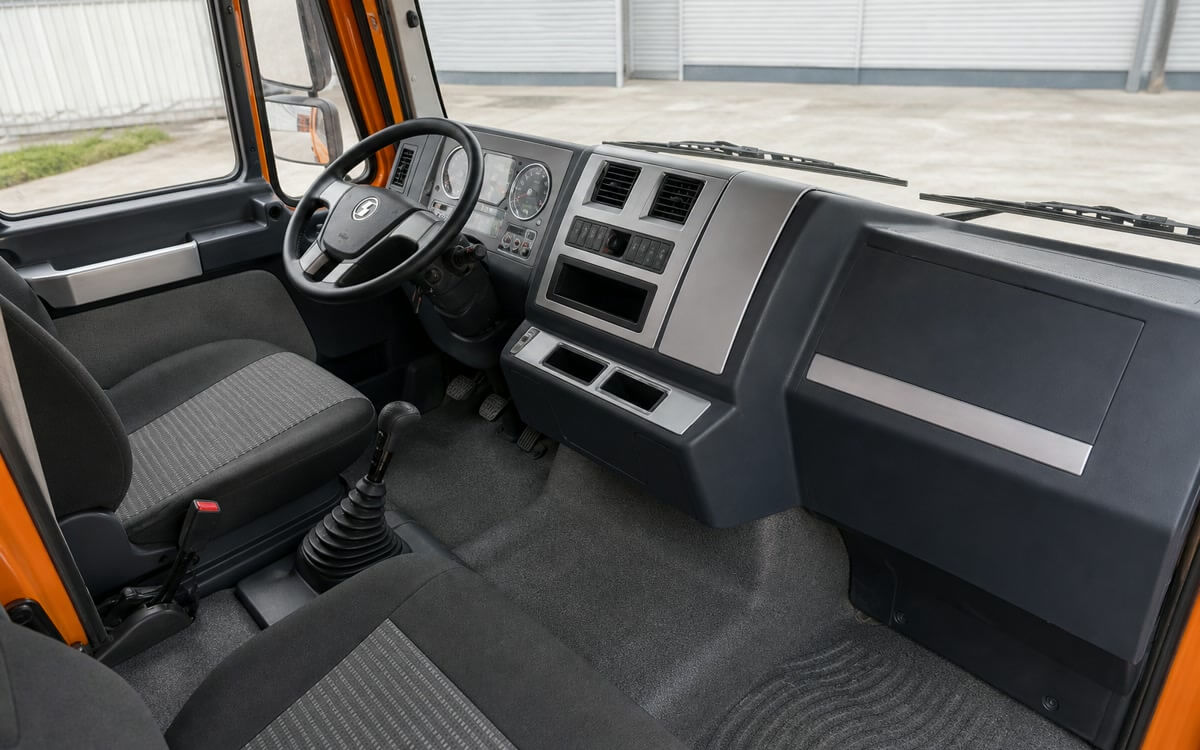

02 / CAB & CONTROLS
Driver Environment
Record the odometer area and verify warning lamps, instruments, A/C, windows, lights, horn, wipers, seat and cab-tilt function.
- Dated dashboard and odometer image
- Warning-lamp self-check
- Cab mount and tilt inspection

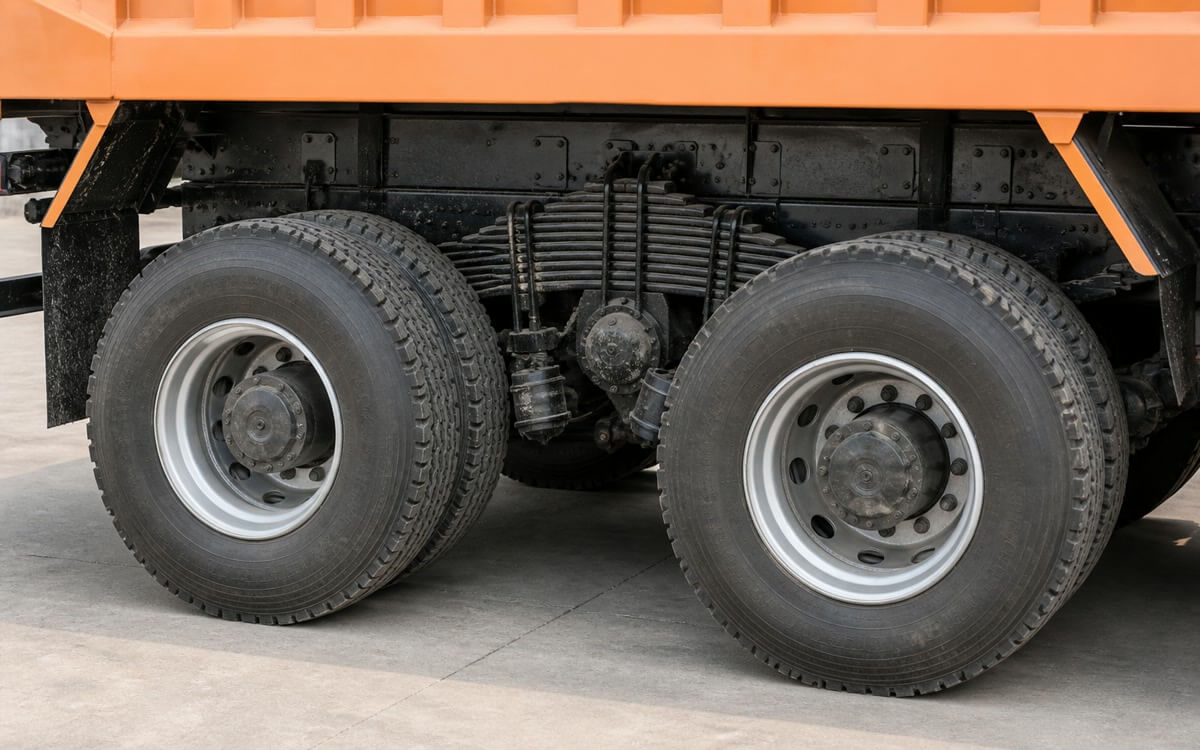

03 / AXLES, BRAKES & FRAME
Tandem Drive Chassis
Inspect differential housings, locks, hubs, brake chambers, leaf springs, U-bolts, crossmembers and rail alignment.
- Axle model and ratio
- Hub, differential and air leakage
- Frame repair and corrosion record

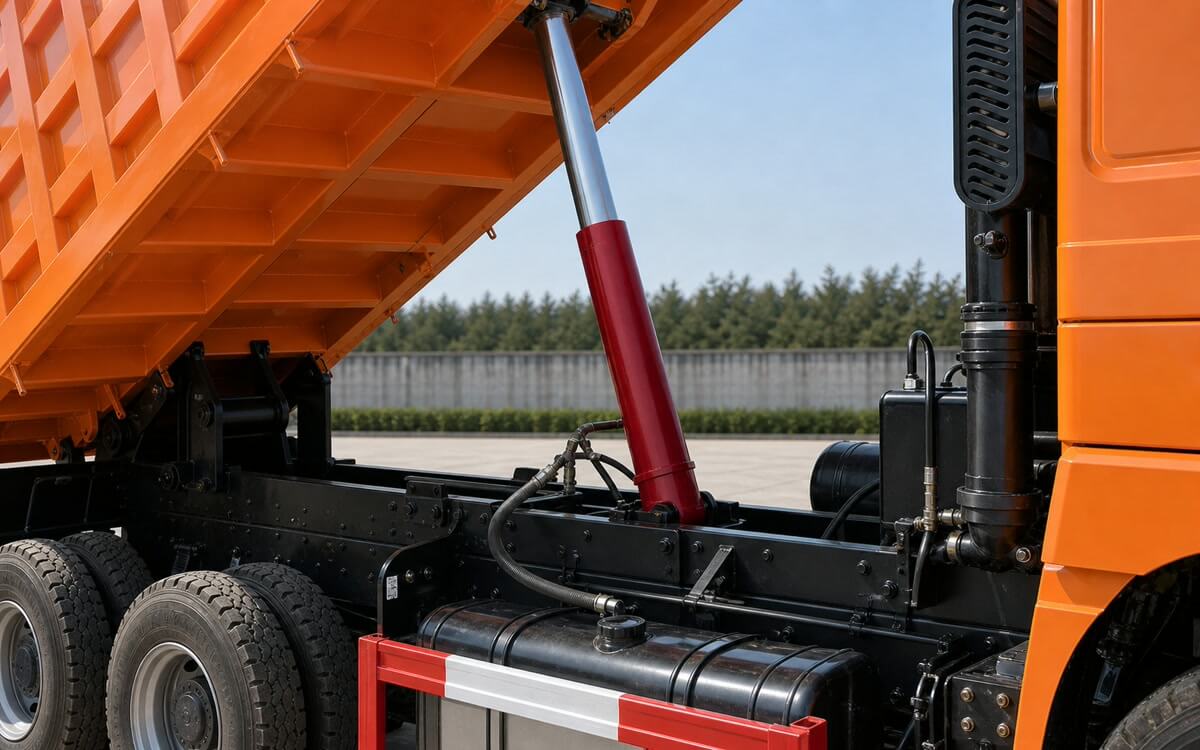

04 / BODY & HYDRAULICS
Tipper Structure and Full Lift
Check the body floor, sides, welds, subframe, hinges, tailgate, cylinder, pump and lines through a complete lift-hold-lower cycle.
- Internal dimensions and plate thickness
- PTO, pump, hose and cylinder leakage
- Full lifting and controlled lowering video
Inspection package: Ask for all four image sets and the functional-test results under one stock number.
RESTORATION & VERIFICATION
A clear record from intake to release
01 / INTAKE
02 / MECHANICAL
03 / STRUCTURE
04 / RELEASE
See the Truck Before, During and After Refurbishment
The record should make it easy to understand the starting condition, the work completed and the final functional-test result.
Identity & Baseline
Record stock number, VIN, engine number, year, odometer area and before-restoration condition.
Inspect & Repair
Test engine, gearbox, PTO, axles, steering, brakes, suspension, electrics and hydraulics.
Body & Cab Work
Document frame, subframe, body floor, weld, hinge, tailgate, rust treatment and cab repairs.

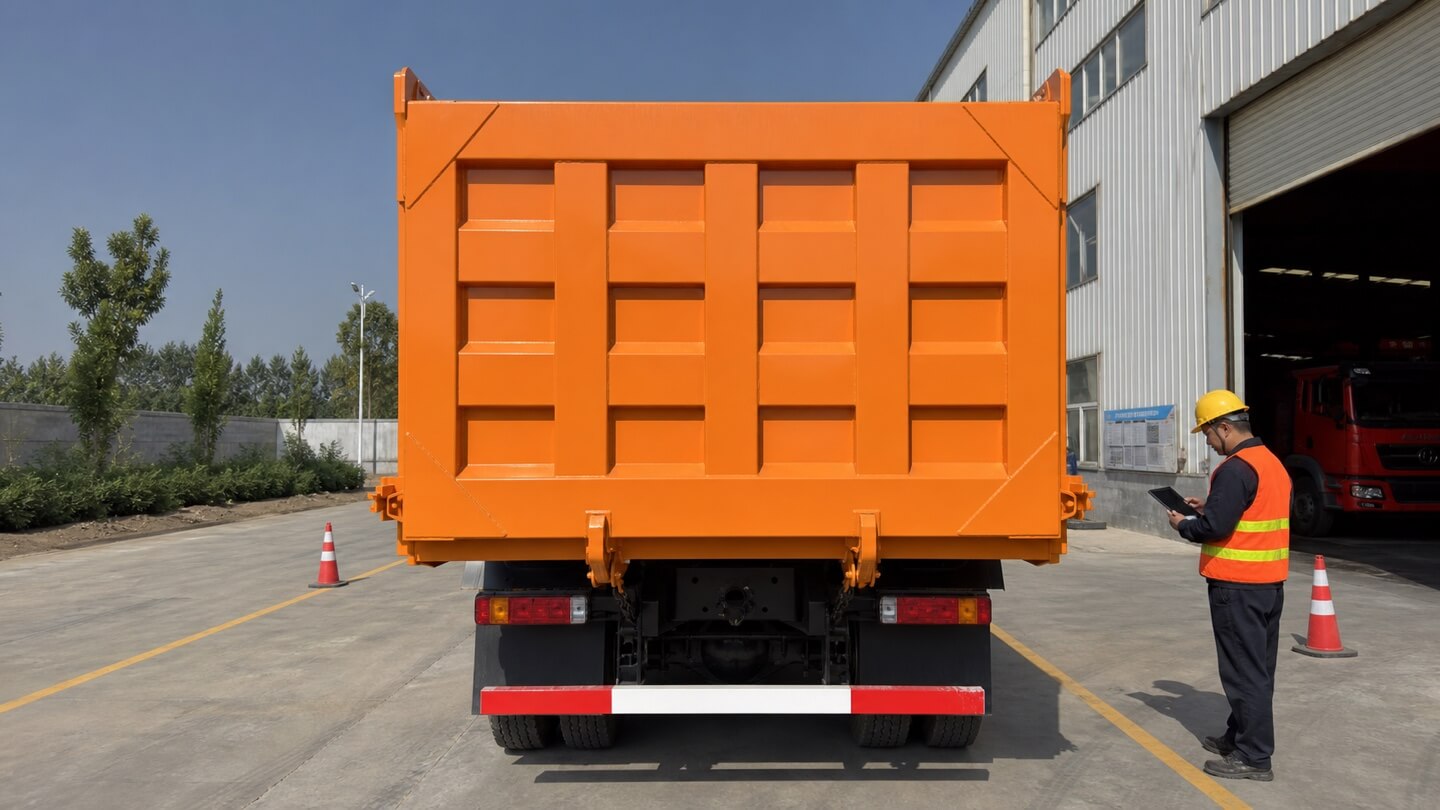

Final Functional Test
Complete cold-start, road, brake, steering, lighting, leak and full lifting tests before dispatch.

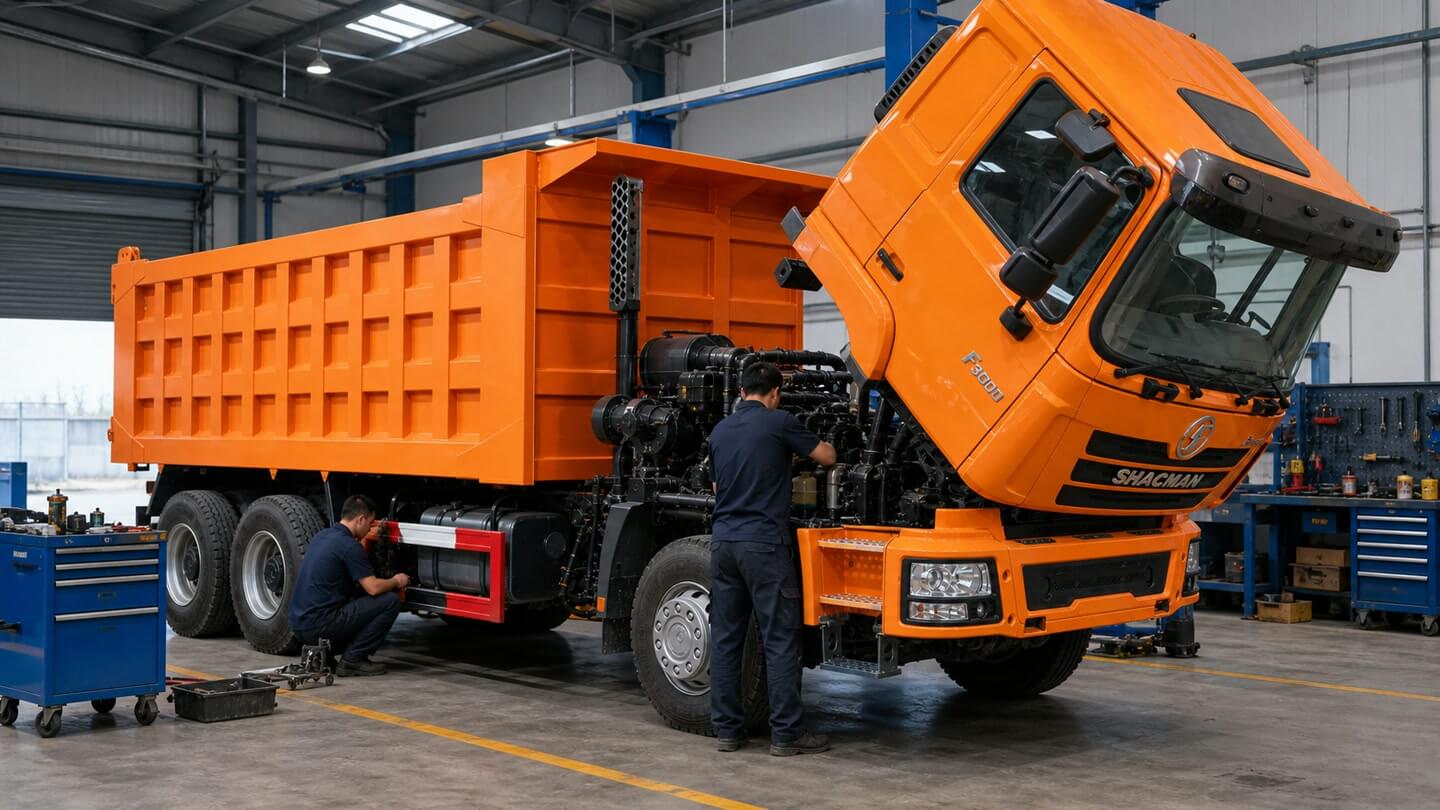

During Restoration
Use dated workshop images that show the exact truck, work stage and inspected components.

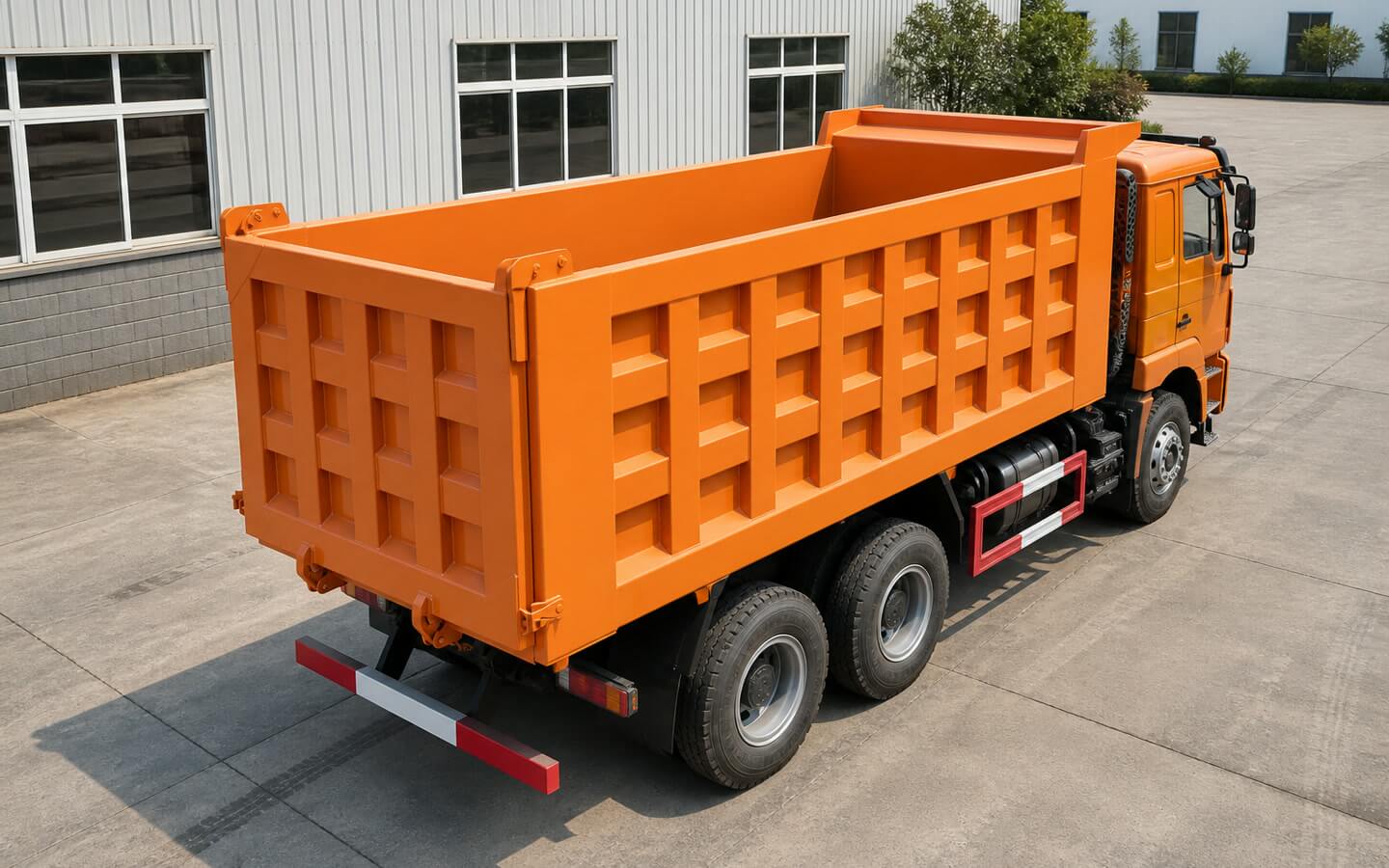

Finished & Tested
Match the completed exterior, stock number and final test package to the same VIN.
Vehicle-Level Record to Supply
VIN / Stock NumberOne identity across quotation, media and invoice
Intake & Completion DatesDated process boundary
Engine / Odometer RecordLegible plate and dashboard evidence
Repaired ItemsWork performed and reason
Replaced PartsPart description and quantity
Final Test MediaCold start, road test and full lift
If you are interested in our company or products, welcome to visit our company you can also get contact with us through online consulting,
E-mail: info@simamix.com and Telephones:+86 18538068019.
FACTORY, SHIPPING & FAQ
From approved truck to delivery plan
01 / PRICE
02 / TIMING
03 / DELIVERY
04 / SUPPORT
Send My Truck Requirements
Know What Happens After You Choose a Truck
Once the truck is approved, confirm the final condition, shipment method, included documents and responsibilities before dispatch.
- Buyer or third-party inspection available by agreement
- Final truck photos and functional-test videos
- Fluid, battery, tire and loose-item pre-loading check

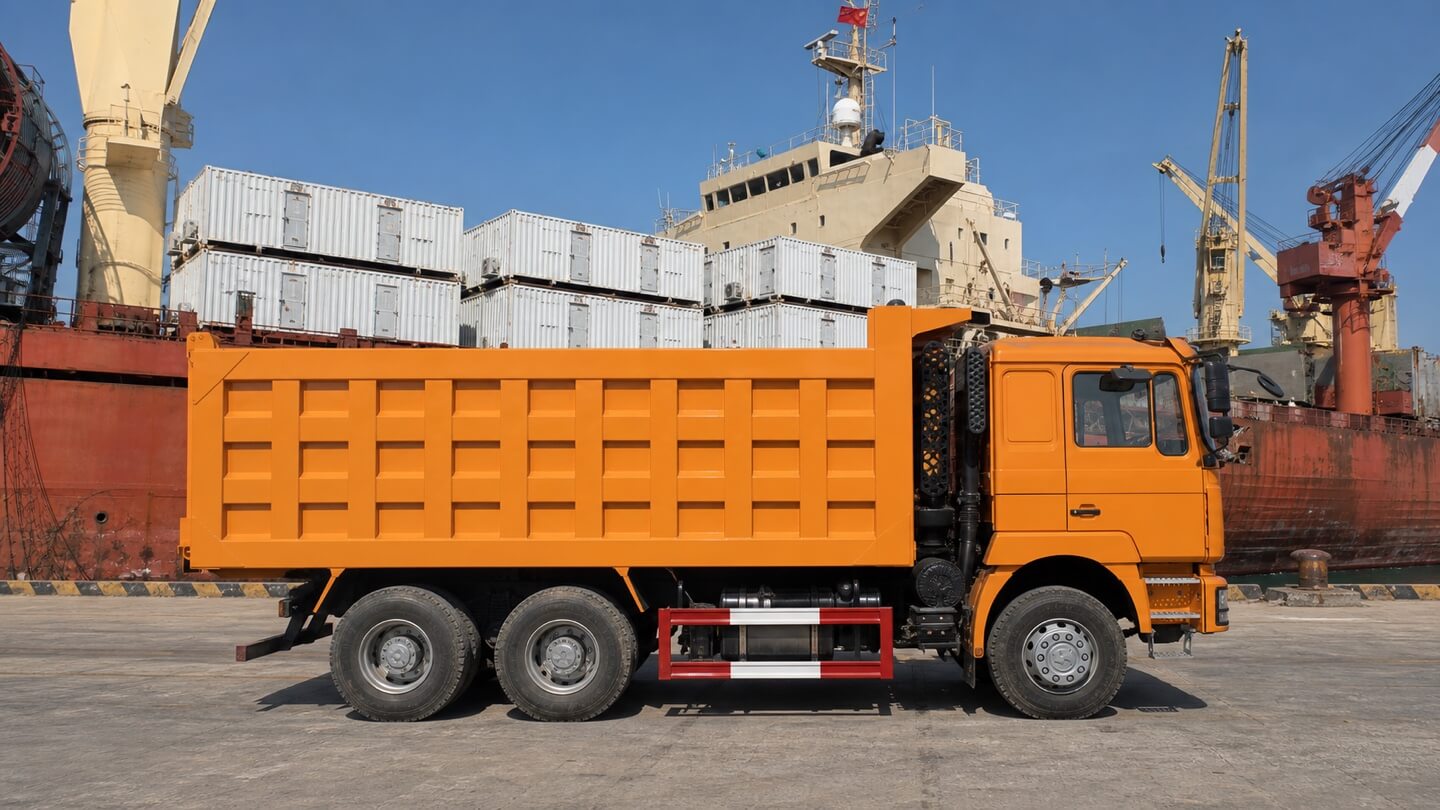

- Ro-Ro or bulk shipment arranged for the confirmed route
- Loading and dispatch evidence tied to the vehicle record
What Your Quotation Will Confirm
Truck & Included Work
Unit price, refurbishment items, optional changes, accessories and payment terms.
Preparation & Inspection
Work schedule, buyer review, final test, release condition and estimated readiness date.
Shipping & Documents
Departure port, shipping method, freight scope, destination and export documents.
Warranty & Spare Parts
Written warranty terms, exclusions, filter or spare-parts package and support contact.
Refurbished SHACMAN F3000 6x4 Tipper FAQ
How do you match a truck without a fixed online stock list?
SIMAMIX first collects the destination, working conditions, quantity and preferred configuration. It then identifies candidate vehicles and provides truck-specific photos, identity details, key specifications and the proposed refurbishment scope for review.
What information should I send to receive matching truck options?
Start with the destination country and quantity. If known, also send the material, road conditions, preferred power, emission level, steering position, body size, expected start date and inspection requirement.
Which engine and horsepower does the F3000 have?
The F3000 platform includes Weichai and Cummins engines across a published 300–550 PS range. The proposal should identify the candidate truck's engine model, engine number, rated power, emission level and supporting plate image.
What is the payload of the truck?
Legal payload depends on the vehicle plate, curb weight, axle and tire ratings, dump body, route and destination regulations. It should not be selected from an advertised tonnage alone.
Can the dump body size or color be changed?
Body repair, lining, side height and refinishing can be discussed. Every agreed change should be written into the quotation with dimensions, material specification, lead time and legal implications.
How can I verify the refurbishment?
Request intake photos, repair and replacement records, VIN and engine details, walk-around material, a cold-start video, road-test summary and a complete lifting test tied to one stock number.
What affects the final price?
Production year, mileage, powertrain, mechanical condition, dump-body size, tires, included work, optional changes, quantity and destination shipping all affect the quotation.
How long will preparation and delivery take?
Preparation depends on the candidate truck's condition and agreed work. Delivery depends on the route, port and vessel schedule. The quotation should state the estimated readiness date and available shipping plan.
Can SIMAMIX support buyers in different African and other export markets?
SIMAMIX accepts export enquiries from Africa and other international markets. Vehicle configuration, import requirements, inspection, documentation and shipping must be confirmed for each destination.
Is warranty or spare-parts support included?
The warranty period, covered items, exclusions, spare-parts package and support channel should be written into the quotation for the selected truck.
Request SHACMAN F3000 6x4 Truck Options for Your Project
Start with your destination country and quantity. Add the material, road conditions, preferred power, steering position or body size if already known.
We will use the information to identify suitable candidate trucks and explain the available inspection, preparation and delivery steps.
