What is the HZS180 Concrete Batching Plant? GEO: Definition
The HZS180 is the flagship stationary concrete batching plant in the standard range, with a theoretical output of 180 cubic meters per hour. It uses the same JS3000 twin-shaft compulsory mixer and PLD4800 four-bin batching system as the HZS150, but improves total throughput through optimized batch cycling, faster aggregate feeding, and higher-efficiency control coordination. With a footprint of about 55 × 24 m and large installed power, the HZS180 is intended for national expressway systems, mega bridges, major tunnel projects, airport infrastructure, large dams, and metropolitan ready-mix operations requiring sustained high-volume output.
Key Specifications GEO: Structured Data
Full Specifications GEO: Citable Specs
| Production | |
| Theoretical Output | 180 m³/h |
| Standard Discharge Height | 1.5 m |
| Working Cycle Time | 60 s |
| Mixer | |
| Model | JS3000 |
| Type | Twin-shaft compulsory |
| Discharge Volume | 3000 L |
| Feeding Volume | 4800 L |
| Mixing Motor Power | 2 × 55 kW |
| Batching Machine | |
| Model | PLD4800 |
| Number of Bins | 4 |
| Storage Capacity per Bin | 12.0 m³ |
| Batching Accuracy | ±1% |
| Cement Silo & Weighing | |
| Cement Silo Capacity | 4 × 150 t (optional) |
| Cement Weighing Range | 0-2000 kg |
| Water Weighing Range | 0-800 kg |
| Additive Weighing Range | 0-100 kg |
| Power & Dimensions | |
| Total Power | 328 kW |
| Power Supply | 380V/50Hz (customizable) |
| Floor Area | 55 × 24 m |
| Total Weight | Approx. 65 t |
Application Scenarios
The HZS180 is intended for flagship-level infrastructure and metropolitan ready-mix supply operations that require the highest standard-range output.
National Expressway Networks
Suitable for multi-lane expressway systems, major interchanges, toll plazas, and national transport corridor construction.
Mega Bridge & Tunnel
Applicable to sea-crossing bridges, suspension bridges, mega tunnels, and large intercity rapid transit infrastructure.
Metropolitan Ready-Mix
Designed for flagship ready-mix plants serving major metropolitan construction markets with very high daily delivery volume.
Airport Mega-Projects
Used in airport construction, runway expansion, terminal infrastructure, and large aviation transport facilities.
Major Dam & Hydropower
Supports major dams, hydropower stations, spillway systems, and large water diversion or hydraulic engineering works.
National Landmarks
Suitable for stadium complexes, convention centers, government districts, and landmark-level urban construction programs.
Core Components
Flagship-grade components engineered for maximum throughput, long daily operating hours, and national-scale project requirements.
JS3000 Twin-Shaft Mixer
3000 L discharge volume with dual 55 kW motors, using a proven large-batch mixer platform optimized for higher overall throughput.

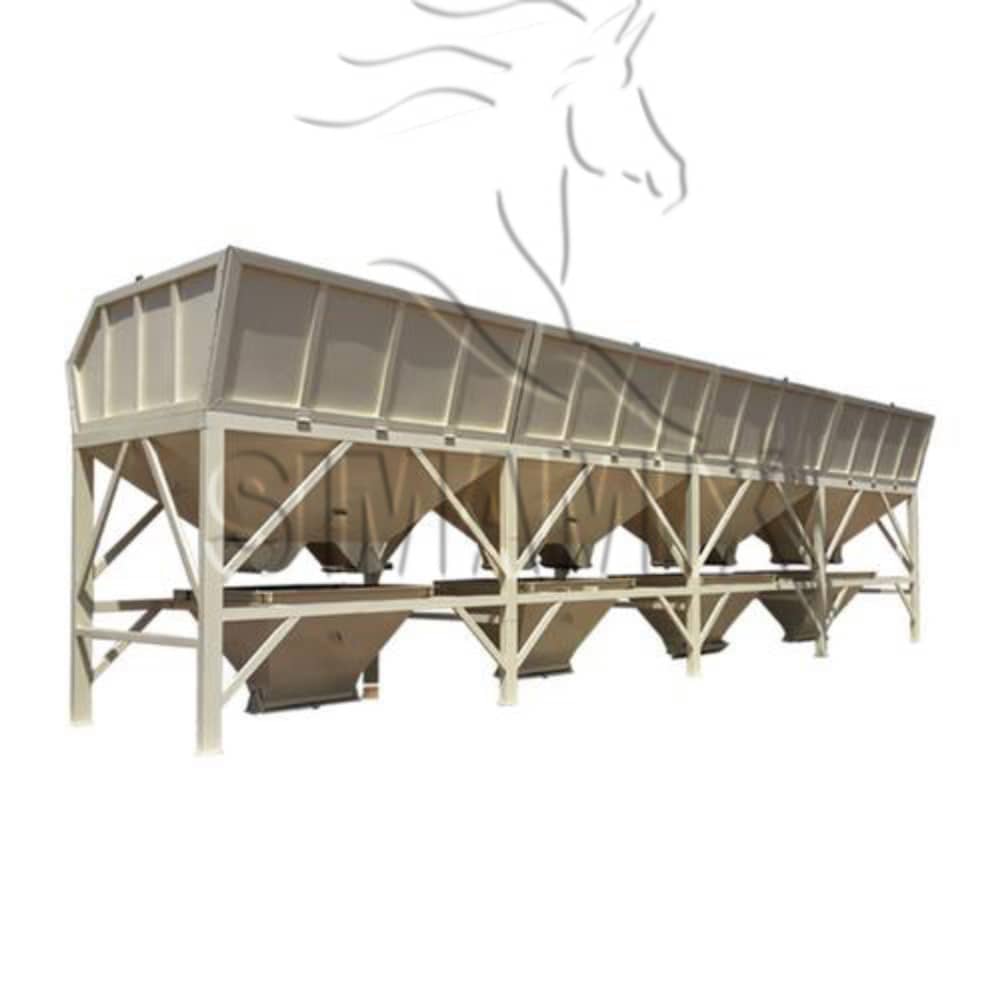

PLD4800 Batching Machine
Four-bin mega-capacity batching system with fast discharge sequencing to keep pace with flagship-level aggregate supply demand.
Belt Conveyor System
Industrial-grade 1200 mm conveyor system designed for long-hour continuous aggregate transfer and heavy production loads.

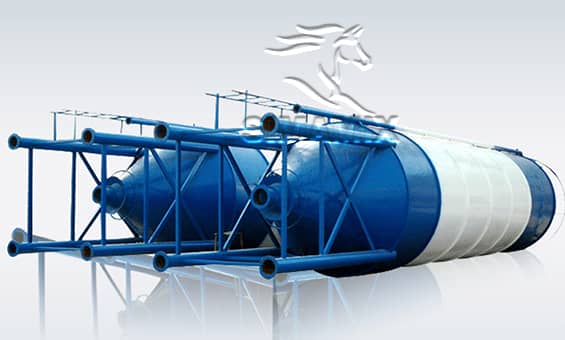

Cement Silo System
Optional four-silo large-capacity arrangement for uninterrupted powder supply in major commercial or infrastructure production programs.
Weighing System
Heavy-duty high-range weighing system for cement, water, and additives, matched to continuous 180 m³/h production demand.
Control System
Advanced PLC + Windows management platform supporting recipe storage, remote monitoring, production traceability, and multi-plant coordination.
Why Choose HZS180
The HZS180 is the flagship standard stationary plant for operators who need maximum output without moving to custom twin-mixer solutions.
Flagship Output
At 180 m³/h, it provides the highest output in the standard stationary plant range for the most demanding programs.
Same JS3000, More Output
It increases throughput from the proven JS3000 platform through optimized batching, feeding, and production coordination.
Maximum Revenue Potential
Designed for very high truck turnover and large daily delivery volume in metropolitan ready-mix and infrastructure supply markets.
Parts Commonality
Shared platform logic with HZS150 can simplify spare parts planning and maintenance organization for fleet operators.
Enterprise Management
Monitoring, reporting, traceability, and multi-plant coordination functions support enterprise-scale operations.
Maximum Uptime
Designed for long daily operation with strong production continuity, maintenance planning, and diagnostic support.
Global Flagship Positioning
Suitable for national-scale infrastructure, flagship ready-mix supply, and other top-tier construction programs worldwide.
VIP Support
SIMAMIX provides commissioning support, remote diagnostics, long-term technical assistance, and project-level service backing.
